Vehicle-Specific Information
  • "A" Unit Chromium: Single Curbside Expando 67ft length, 20ft width, 13ft 6in height
  • Chromium Tractor # 517257, 1XKAD49XXDJ369114, PA-AG08421
  • TrailerVIN# 1U9EX532095123260, IL- 391576ST
  • Total Weight A Unit 79,820
  • "B" Unit Nickel: 66ft length, 16ft width, 13ft 6in height (lift gate deployed)
  • No expando
  • Nickel Tractor #209125, 1XPBDP9X4KD235212, IN-2725601
  • Trailer VIN # 1GRAA0624BK215212, IL -413010ST
  • Total Weight B Unit 77,020
  • "A" Unit Chromium: 208 - 240 Volt Three Phase - 400 AMP Service required or two 200 AMP Services
  • "B" Unit Nickel: 208 - 240 Volt Three Phase - 200 AMP Service required
  • Tech power Transformer Tap selectable
  • Environmental Power Transformer Tap Selectable
Production
  • GVG Kayenne K-Frame Switcher, 128 Inputs / 48 Outputs, 5 M/E
  • 16 IDPM / eDPM / 2D DPM
  • Still Store Movies
  • Flexkey
  • DoubleTake
  • Elite Package
Communications
  • Adam Intercom System - 192 Ports
  • 12 dual listen beltpacks
  • 20 single muff headsets
  • 15 double muff headsets
  • 12 IFB Beltpacks
  • 10 walkie talkies with 2 base stations
  • 1 phone system with 12 lines
  • 4 ring down phone lines
  • 8 TIF - Telephone Interfaces
  • 8 QKT
Cameras
  • 12 Sony 1500R Camera
  • 8 Sony HDLA Large Lens Adapter
  • 1 Sony SXS Camera Package
  • 1 POV Camera (POV Camera is a Sony HDC X310 HD POV w/Fiber)
  • 8 Hard Camera Panhead & Tripod
  • 8 HH Camera Panhead & Tripod
  • 12 CCUs on Board
  • 18 CCUs Wired For
Lenses
  • 2 Canon 100x9.3 Hard Lens
  • 2 Canon 95x8.6 Hard Lens
  • 4 Canon 86x9.3 Hard Lens
  • 6 Fujinon 23X7.6 Hand Held Lens
  • 2 Fujinon 18X5.5 Hand Held Lens
  • 2 Fujinon HA14.4x4.5 Wide angle Lens
Support Equipment
  • Evertz EQX 3G
  • HD video - 432 inputs x 450 outputs
  • 128 inputs x 112 outputs embed/de-embed
  • 16 MADI Ports
  • AES 192 inputs x 192 outputs
  • Analog audio 96 inputs x 96 outputs
  • 26 Utility Frame Syncs/Processors
  • 8 HD Video over Fiber Transmitters
  • 1 Light kits
  • 1 Fiber Booth/Field Kits
  • Monitors:
  • 7-20" LCD, 3-17" LCD, 6-9" SDI/Analog
Audio
  • Calrec Apollo Digital Audio Console with Bluefin 2 High Density Signal Processing
  • 1020 Channels with full signal processing
  • 128 Mix busses for Group and Main Outputs
  • 96 Multi-track busses
  • 48 Aux busses
  • 128 Fader, A/B Layers
  • 64 analog inputs & 64 analog outputs
  • 128 AES inputs & 128 AES outputs
  • 512 MADI inputs & 512 MADI outputs
  • 2 Hydra II Field Boxes
  • 1 Dolby Encoder/Decoder Package
  • 1 Day Sequerra Up-Mix/Down-Mix Package
  • 2 Digicart
  • 1 CD Player
Microphones
  • 10 Announcer Headsets
  • 10 Daltech Announce Consoles
  • 10 Short Shotgun Microphones
  • 6 Long Shotgun Microphones
  • 20 Stick Microphones
  • 10 Lavalier Microphones
Record & Playback
  • 4 EVS XT3 6 Channel LSM 10 GB
  • 1 EVS XT3 12 Channel LSM 10 GB
  • 1 EVS XT3 6 Channel Spotbox 10 GB
  • 1 EVS X-File[3]
  • 1 EVS IP Director
  • 1 EVS XT Access
  • 2 EVS Xhub[3]
  • Wired for 10 EVS XT3 6-channel Servers w/10GB Networking
  • 1 Panasonic DVCPro HD AJ-HD1700 VTR
  • 1 Sony HDW-2000 HDCam VTR
  • 1 Sony HDW-M1800 HDCam VTR
  • 1 Panasonic AG-HPG20 P2 Player/Recorder
  • 3 DVD Recorder w/ remote control
Graphics
  • 1 Chyron Hyper X3
Cables
  • 9mm SMPTE: 8 -500' 10 -250' 10 -100' 10 -50' 10 -25'
  • 9mm SMPTE Mult: 2 (6x125')
  • Mini Triax: 4 -500' 10 -250' 10 -100' 10 -25'
  • Mini Triax Mult: 2 (6x125')
  • DT12 10 -250' 10 -100' 4 -50'
  • 9 DT12 Fanout sets
  • 6 DT12 Breakout Box(es)
  • 4 Pair Mult 4- 100'
  • 6 Pair Mult 2- 100'
  • 2 4 Pair Fanout to XLR Female
  • 2 4 Pair Fanout to XLR Male
  • Assorted Single Line XLR
  • TAC-12 (ST to ST) 1 -1500' 3 -1000' 4 -500' 8 -250' 6 -150' or less
  • 5 Pair HD Coax Loom 10 -125'
  • 10 Pair HD Coax Loom 5 -25'
  • 10 Pair SD Coax Loom 5 -125'
  • Assorted Single Line Coax
Chromium Front Tape Monitor Wall
Chromium Production Monitor Wall
Chromium Rear Tape Monitor Wall

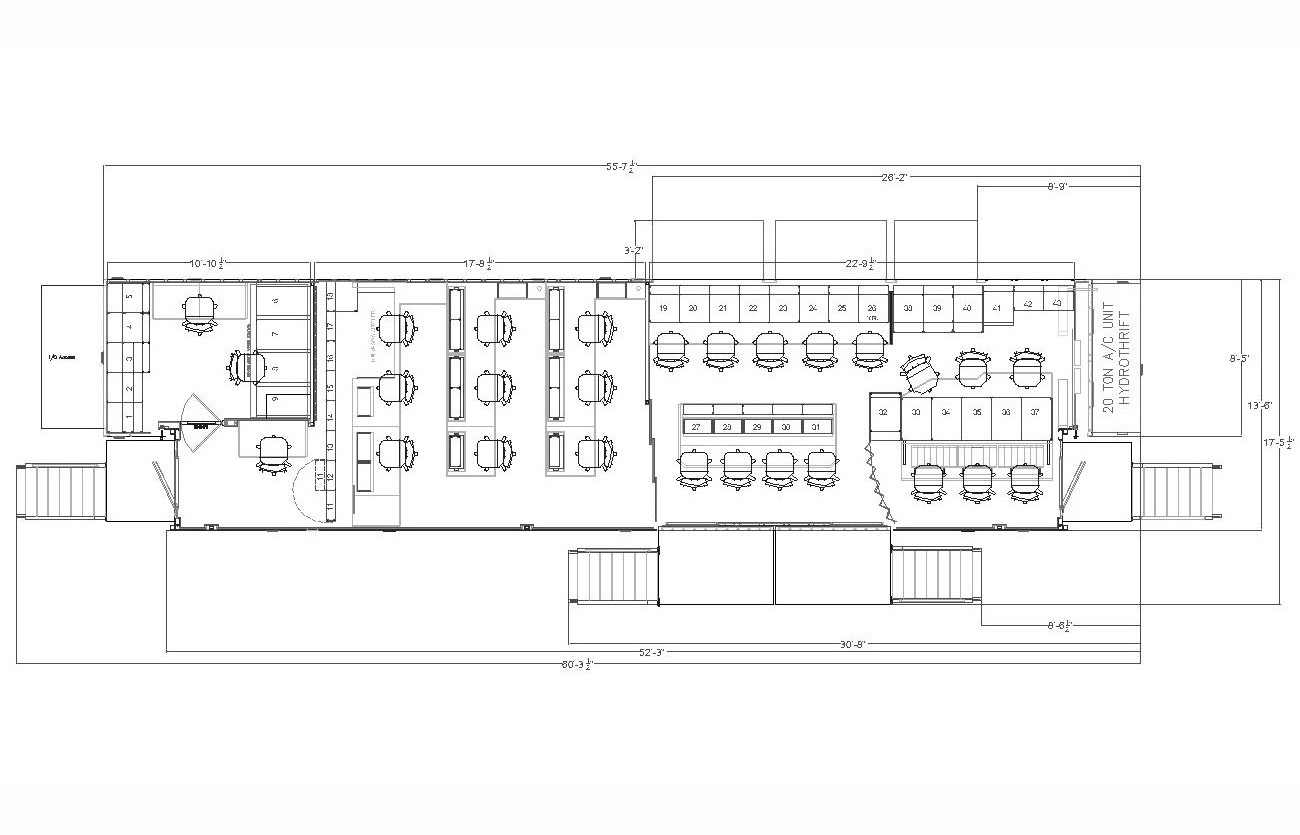

Chromium Floor Plan
Nickel Floor Plan
