Supershooter 8

Supershooter 8

NEP | US

Supershooter 8 is an IP-based mobile unit capable of 1080p, HDR or 4K. It travels with its support unit, ST8.

What’s a Rich Text element?

The rich text element allows you to create and format headings, paragraphs, blockquotes, images, and video all in one place instead of having to add and format them individually. Just double-click and easily create content.

Static and dynamic content editing

A rich text element can be used with static or dynamic content. For static content, just drop it into any page and begin editing. For dynamic content, add a rich text field to any collection and then connect a rich text element to that field in the settings panel. Voila!

How to customize formatting for each rich text
  • Headings, paragraphs, blockquotes, figures, images, and figure captions can all be styled after a class is added to the rich text element using the "When inside of" nested selector system.
  • ‍Headings, paragraphs, blockquotes, figures, images, and figure captions can all be styled after a class is added to the rich text element using the "When inside of" nested selector system.

Headings, paragraphs, blockquotes, figures, images, and figure captions can all be styled after a class is added to the rich text element using the "When inside of" nested selector system.

Vehicle-Specific Information
  • A Unit - 53' double expando
  • B Unit - 53' expando with liftgate
Production
  • GVG Kayenne X-Frame Switcher, 128 Inputs / 64 Outputs, 5.5 M/E, 1080p
  • 16 IDPM / eDPM / 2D DPM
  • Still Store Movies
  • Flexkey
  • DoubleTake
  • Elite Package
  • Wired for a K2 Summit integral clip server
Communications
  • Telex ADAM Intercom System
  • 12 Dual listen beltpacks
  • 8 DANTE dual listen beltpacks
  • 12 IFB Beltpacks
  • 8 DANTE IFB Beltpacks
  • 4 DANTE quadlisten beltpacks
  • 12 walkie talkies with 2 base stations
  • 8 TIF
  • 6 QKT
Cameras
  • 12 Sony HDC 3500 Cameras
  • 2 Sony HDC 2500 Cameras (Carried on ST8)
  • 1 Panasonic ENG Package
  • 10 Sony HDLA Large Lens Adapter (4 carried on ST8)
  • 10 HH Panhead & Tripod (4 carried on ST8)
  • 10 Hard Panhead & Tripod (4 carried on ST8)
  • Wired for 24 CCU
Lenses
  • 2 Canon 122x 4K Hard Lens
  • 4 Canon 111x 4K Hard Lens
  • 2 Canon 100x Hard Lens (Carried on ST8)
  • 2 Canon 86x Hard Lens (Carried on ST8)
  • 4 Canon 24x  4K Hand Held Lens
  • 2 Canon 14x 4K Wide Angle lens
Support Equipment
  • Lawo IP Router
  • HD Video 670 inputs x 734 outputs
  • SDI Video 442 inputs x 393 outputs
  • 380 x 312 De-Embed/Embed
  • Analog Audio 96 inputs x 96 outputs
  • AES 96 inputs x 96 outputs
  • MADI 18 inputs x 18 outputs
  • 30 Frame Syncs
  • 11 HD video over fiber transmitters
  • Virtual Monitor Walls with The Wall user interface throughout
  • Outboard Monitors: 6 21" HDSDI; 4 18" HDSDI;
  • 4 9' SDI Analog Carried on ST8
Audio
  • Calrec Apollo Digital Audio Console with Bluefin 2 High Density Signal Processing
  • 1020 Channels with full signal processing
  • 128 Mix busses for Group and Main Outputs
  • 96 Multi-track busses
  • 48 Aux busses
  • 72 Fader, A/B Layers
  • 96 analog inputs & 96 analog outputs
  • 64 AES inputs & 64 AES outputs
  • 8 MADI inputs & 8 MADI outputs
  • 2 Hydra-II Wall Boxes (24x8)
  • 1 Encoder/Decoder package
  • 2 Digicart E
  • 1 CD Player/Burner
  • 1 Enco DAD Music Player
Microphones
  • 6 Studio Tech Announce Consoles
  • 2 DANTE Announce Consoles
  • 10 Announcer Headsets (4 carried on ST8)
  • 6 Long Shotgun mics
  • 14 Short Shotgun mics (8 carried on ST8)
  • 8 Stick mics
  • 8 Lavalier mics
Record & Playback
  • 2 EVS XT-VIA 12 Channel LSM
  • 1 EVS XT-VIA  8 Channel LSM
  • 1 EVS XT-VIA 6 Channel Spot Box
  • 1 EVS Xhub[3]
  • 1 EVS X-File[3]
  • 1 USB Recorder
Graphics
  • Upon request
Cable
  • 9mm SMPTE: 8 -500' 14 -250' 16 -100' 8 -25'
  • SMPTE Mults 2 (6x125') on ST8
  • Mini Triax: 8 -500' 14- 250' 16 -100' 8 -50'
  • Mini Triax Mults 2 (6x125')
  • DT12 11 -250' 15 -100' 10 -50' 1 -500'
  • 8 DT12 Fanouts
  • 6 DT12 Breakout boxes
  • TAC 12 Military 2 -1500' 6 -500' 6 -250'
  • TAC 12 ST - ST 1 -500' 1 -250'
  • TAC 24 ST -ST 1 -500'
  • 5 Pair Coax Looms 1 -25' 10 -125'
  • 10 Pair Coax Looms 2 -25' 3 -50' 1 -100'
Supershooter 8 Production Monitor Wall
Supershooter 8 Record Replay Front Monitor Wall
Supershooter 8 Record Replay Rear Monitor Wall
Supershooter 8 Video Monitor Wall
Supershooter 8 Floor Plan

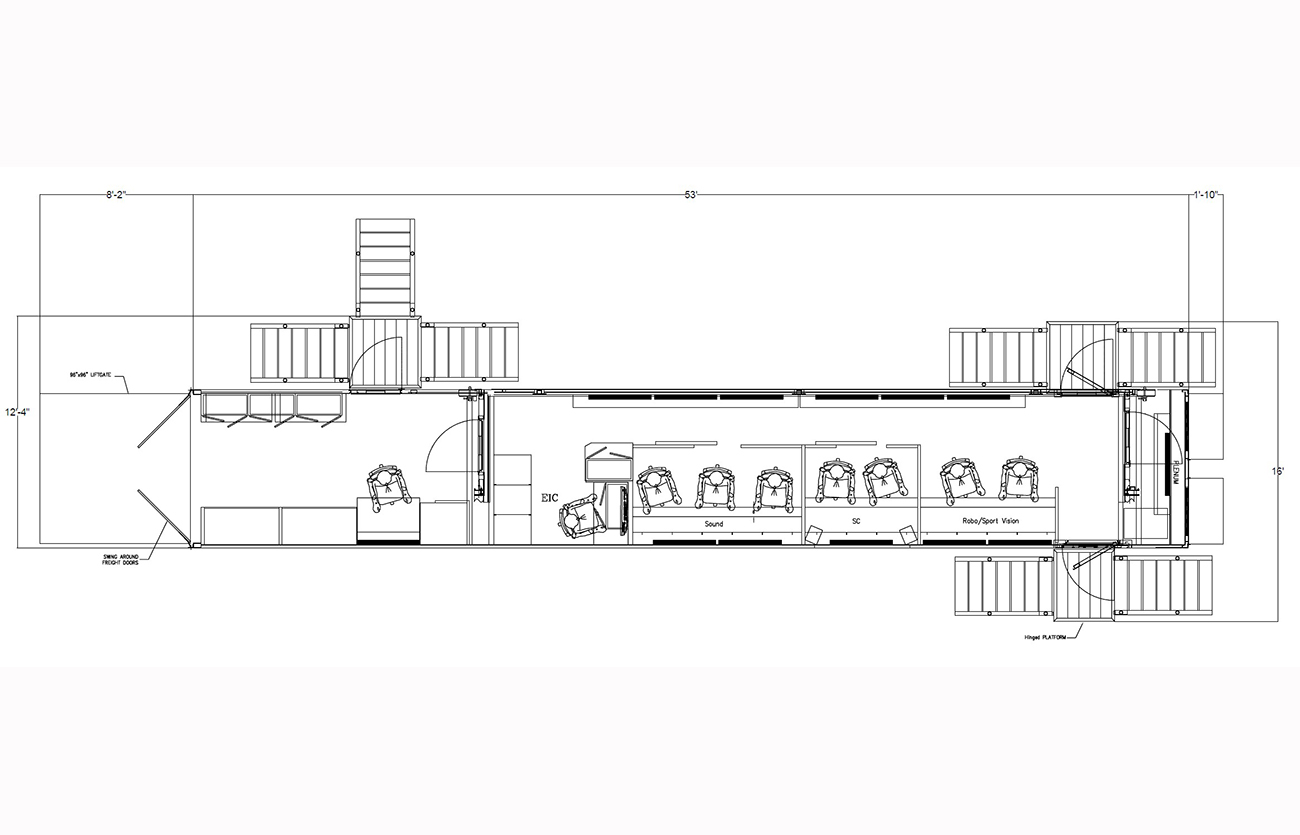

ST8 Floor Plan Option 1
ST8 Floor Plan Option 2
