Supershooter 18

Supershooter 18

NEP | US

Supershooter 18 is an HD mobile unit capable of 1080i and 720p.

    What’s a Rich Text element?

    The rich text element allows you to create and format headings, paragraphs, blockquotes, images, and video all in one place instead of having to add and format them individually. Just double-click and easily create content.

    Static and dynamic content editing

    A rich text element can be used with static or dynamic content. For static content, just drop it into any page and begin editing. For dynamic content, add a rich text field to any collection and then connect a rich text element to that field in the settings panel. Voila!

    How to customize formatting for each rich text
    • Headings, paragraphs, blockquotes, figures, images, and figure captions can all be styled after a class is added to the rich text element using the "When inside of" nested selector system.
    • ‍Headings, paragraphs, blockquotes, figures, images, and figure captions can all be styled after a class is added to the rich text element using the "When inside of" nested selector system.

    Headings, paragraphs, blockquotes, figures, images, and figure captions can all be styled after a class is added to the rich text element using the "When inside of" nested selector system.

    Vehicle-Specific Information
    • Curbside Expando: 76' long x 13'6" high x 17' wide - expanded with tractor or 56' long x 13'6" high x 17' wide - expanded without tractor
    • B-Unit ST18
    • 400 amp, 208 volt, 3 phase OR 2 200amp, 208 volt, 3 phase
    Production
    • GVG Kayenne K-Frame Switcher, 128 Inputs / 96 Outputs, 9 M/E
    • 16 IDPM / eDPM / 2D DPM
    • Still Store Movies
    • Flexkey
    • DoubleTake
    • Elite Package
    Communications
    • Adam Intercom System - 136 Ports
    • 18 dual listen beltpacks
    • 18 single muff headsets
    • 14 double muff headsets
    • 14 IFB Beltpacks
    • 6 walkie talkies with 2 base stations
    • 1 phone system with 16 lines
    • 4 TIF - Telephone Interfaces
    • 6 QKT
    Cameras
    • 12 Sony HDC2500 Camera
    • 1 Sony HDC4300 Camera
    • 4 Sony HDLA Large Lens Adapter
    • 1 POV Camera
    • 4 Hard Camera Panhead & Tripod
    • 8 HH Camera Panhead & Tripod
    • 13 CCUs on Board
    • 15 CCUs Wired For
    Lenses
    • 2 Canon 95x8.6 Hard Lens
    • 2 Canon 86x9.3 Hard Lens
    • 6 Canon Lens 21:1 Hand Held Lens
    • 2 Canon 4.7 Wide angle Lens
    Support Equipment
    • PESA
    • HD video - 176 inputs x 176 outputs
    • 96 inputs x 96 outputs embed/de-embed
    • MADI 4 inputs x 4 outputs
    • AES 512 inputs x 640 outputs
    • Analog audio 128 inputs x 128 outputs
    • 30 Utility Frame Syncs/Processors
    • 10 HD Video over Fiber Transmitters
    • 5 Embedders (16 channels)
    • 5 De-embedders (16 channels)
    • 8 Color Correctors
    • Monitors: 6-22" HD LCD
    Audio
    • Calrec Sigma Digital Audio Console
    • Bluefin DSP Processing
    • 340 Channels with full signal processing
    • 48 Multi-track busses
    • 20 Aux busses
    • 60 Fader, A/B Layers
    • 76 analog inputs & 92 analog outputs
    • 96 AES inputs & 96 AES outputs
    • 4 MADI ports
    • 1 Dolby Encoder/Decorder Package
    • 2 Digicart
    • 1 CD Player
    • Console Analog output count includes Aux outputs (20) and Multi-track outputs (24)
    Microphones
    • 10 Announcer Headsets
    • 7 Daltech Announce Consoles
    • 10 Short Shotgun Microphones
    • 20 Long Shotgun Microphones
    • 9 Stick Microphones
    • 7 Lavalier Microphones
    Record & Playback
    • 2 EVS XT3 12 Channel LSM 10 GB
    • 2 EVS XT3 8 Channel LSM 10 GB
    • 1 EVS XS3 6 Channel Spotbox 10 GB
    • 1 EVS X-File[3]
    • 2 EVS Xhub[2]
    • 2 Sony PDW F1600 HD XDCam VTR
    • 4 DVD Recorder w/ remote control
    Graphics
    • Chyron Mosaic XL
    Cables
    • 9mm SMPTE: 10 -500' 10 -250' 10 -100' 10 -50'
    • DT12: 2 -500' 6 -250' 6 -100' 5 -50'
    • 10 DT12 Fanout sets
    • 4 DT12 Breakout Box(es)
    • TAC-12 ST-ST: 1 -1500' 1 -1000' 6 -500'
    • TAC-4 ST-ST: 1 -250'
    • 5 Pair HD Coax Loom 4 -125'
    • 10 Pair HD Coax Loom 2 -50' 1 -125'
    • 2 sets of 75' 4/0 Power Cable
    Supershooter 18 Production Monitor Wall

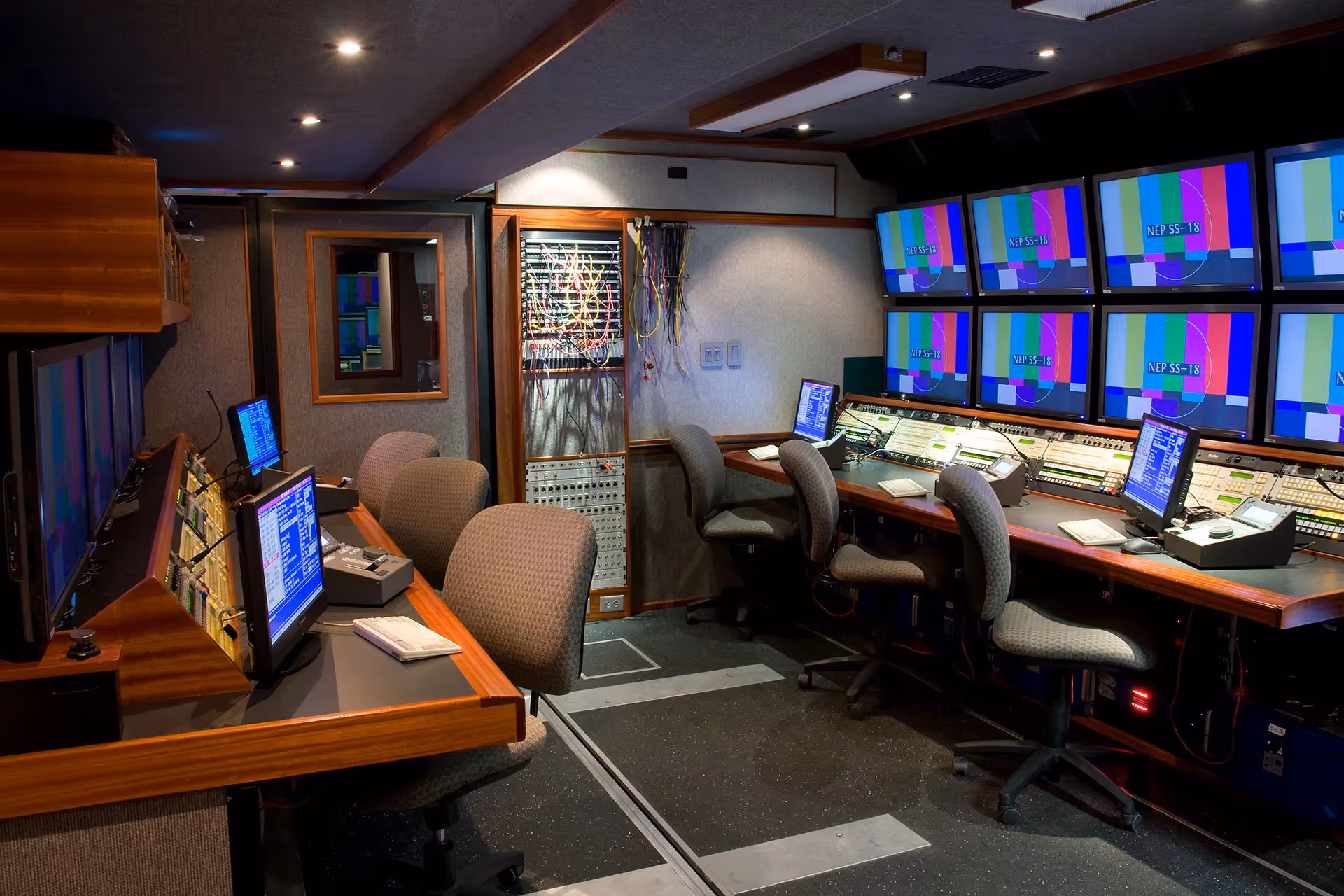

    Supershooter 18 Tape Monitor Wall
    Supershooter 18 Video Monitor Wall
    Supershooter 18 Floor Plan
