Supershooter 14

Supershooter 14

NEP | US

Located in Hawaii, Supershooter 14 is designed for quick deployment and is ideal for regional sports unit and smaller entertainment projects.

What’s a Rich Text element?

The rich text element allows you to create and format headings, paragraphs, blockquotes, images, and video all in one place instead of having to add and format them individually. Just double-click and easily create content.

Static and dynamic content editing

A rich text element can be used with static or dynamic content. For static content, just drop it into any page and begin editing. For dynamic content, add a rich text field to any collection and then connect a rich text element to that field in the settings panel. Voila!

How to customize formatting for each rich text
  • Headings, paragraphs, blockquotes, figures, images, and figure captions can all be styled after a class is added to the rich text element using the "When inside of" nested selector system.
  • ‍Headings, paragraphs, blockquotes, figures, images, and figure captions can all be styled after a class is added to the rich text element using the "When inside of" nested selector system.

Headings, paragraphs, blockquotes, figures, images, and figure captions can all be styled after a class is added to the rich text element using the "When inside of" nested selector system.

Vehicle-Specific Information
  • 58' 4" long x 13' 6" high x 16' 6" wide - expanded without tractor
  • curbside expando
  • 400 amp, 208 volt, 3 phase OR 2 200amp, 208 volt, 3 phase
Production
  • GVG Kalypso Switcher, 90 Inputs / 4 M/E
  • 1 Transform Engine (external DVEous)
Communications
  • Adam Intercom System - 120 Ports
  • 14 dual listen beltpacks
  • 12 single muff headsets
  • 12 double muff headsets
  • 10 IBF beltpacks
  • 6 walkie talkies with 2 base stations
  • 1 phone system with 10 lines
  • 4 TIF - Telephone Interfaces
  • 4 QKT
Cameras
  • 6 Sony HDC1000 Camera
  • 5 Sony HDC1500 Camera
  • 1 Sony HDC1500R Camera
  • 6 Hard Camera Panhead & Tripod
  • 6 HH Camera Panhead & Tripod
  • 12 CCUs on board
  • 12 CCUs Wired For
Lenses
  • 2 Cannon 100x9.3 Hard Lens
  • 2 Cannon 86x9.3 Hard Lens
  • 2 Cannon 75x9.3 Hard Lens
  • 2 Cannon 22:1 Hand Held Lens
  • 2 Cannon 13x4.5 Wide Angle Lens
Support Equipment
  • Thompson Router
  • HD video - 128 inputs x 128 outputs
  • AES 192 inputs x 192 outputs
  • Analog audio 64 inputs x 64 outputs
  • 15 Utility Frame Syncs/Processors
  • 4 HD Video over Fiber Transmitters
  • 3 Light Kits
  • 2 Fiber Booth Kits
  • Monitors: 4 - 22" LCD, 3 - 13" LCD, 4 - 13" Analog, 6 - 9" Analog
Audio
  • Calrec Alpha Digital Audio Console
  • 340 Channels with full signal processing
  • 48 Multi-track busses
  • 20 Aux busses
  • 60 Fader, A/B Layers
  • 96 analog inputs & 112 analog outputs
  • 32 AES inputs & 32 AES outputs
  • 1 Hydra 1 box (24x8)
  • 1 Dolby Encoder/Decoder Package
  • 2 Digicart
  • 1 CD Player
Microphones
  • 8 Announcer Headsets
  • 5 Daltech Announce Consoles
  • 12 Short Shotgun Microphones
  • 7 Long Shotgun Microphones
  • 12 Stick Microphones
  • 12 Lavalier Microphones
Record & Playback
  • 4 EVS XT3 6 Channel
  • 1 EVS XT3 Spotbox
  • 1 EVS X-File[3]
  • 1 EVS Xhub[3]
  • 1 Sony HDW-2000 HDCam VTR
  • 1 Sony HDW-M2000 HDCam VTR
  • 3 DVD Recorder w/ remote control
Graphics
  • 1 Chyron Hyper X3
  • 1 For-A Telestrator
Cables
  • 9mm SMPTE: 15 - 500', 10 - 250', 10 - 100'
  • DT12: 2 -500' 8 -250' 8 -100' 2 -50'
  • TAC-12 ST-ST: 1 -1000' 2 -500' 1 - 250'
  • 5 Pair HD Coax Loom 5 -125' 2 -50' 2 -25'
  • Assorted Single Line Coax and XLR Cables
  • 2 sets of 75' 4/0 Power Cable

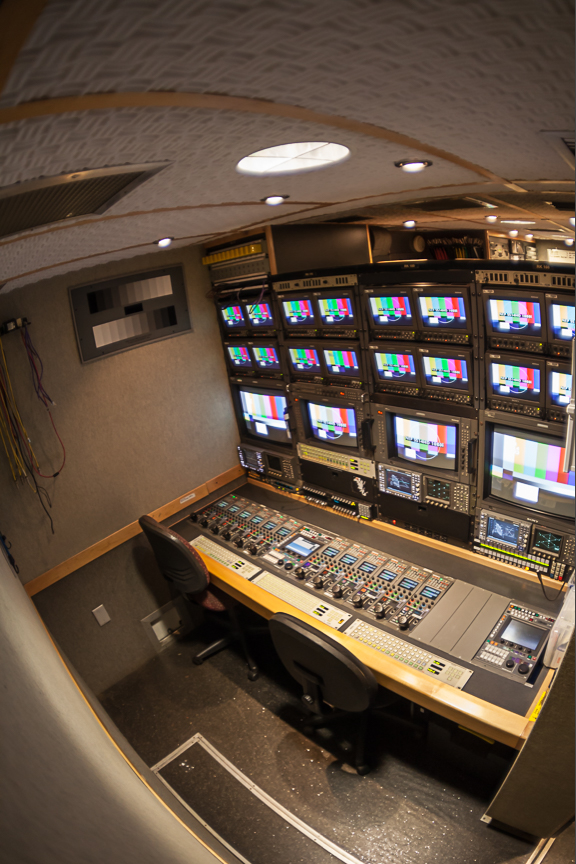

Supershooter 14 Production Monitor Wall
Supershooter 14 Tape Monitor Wall
Supershooter 14 Floor Plan
