NCPVII is an HD mobile unit capable of 1080i and 720p. It travels with its support truck NCPVIIB.

SPECIFICATIONSMONITOR WALLSFLOOR PLANS

    specifications

    What’s a Rich Text element?

    The rich text element allows you to create and format headings, paragraphs, blockquotes, images, and video all in one place instead of having to add and format them individually. Just double-click and easily create content.

    Static and dynamic content editing

    A rich text element can be used with static or dynamic content. For static content, just drop it into any page and begin editing. For dynamic content, add a rich text field to any collection and then connect a rich text element to that field in the settings panel. Voila!

    How to customize formatting for each rich text
    • Headings, paragraphs, blockquotes, figures, images, and figure captions can all be styled after a class is added to the rich text element using the "When inside of" nested selector system.
    • ‍Headings, paragraphs, blockquotes, figures, images, and figure captions can all be styled after a class is added to the rich text element using the "When inside of" nested selector system.

    Headings, paragraphs, blockquotes, figures, images, and figure captions can all be styled after a class is added to the rich text element using the "When inside of" nested selector system.

    Vehicle-Specific Information
    • A-Unit
    • 66' or 56' long x 13'6" high x 22' wide - expanded without tractor
    • Street side expando
    • 2 208 volt, 3 phase, 200 amps OR 1 208 volt, 3 phase, 400 amps
    • B-Unit
    • 53’ long non-expanding trailer
    • 1 208 volt, 3 phase, 200 amps
    Production
    • GVG Kayenne X-Frame Switcher, 128 Inputs / 96 Outputs, 9 M/E
    • 16 IDPM / eDPM / 2D DPM
    • Still Store Movies
    • Flexkey
    • DoubleTake
    • Elite Package
    Communications
    • Adam Intercom System - 280 Ports
    • 20 dual listen beltpacks
    • 12 single muff headsets
    • 12 double muff headsets
    • 15 IFB Beltpacks
    • 12 walkie talkies with 3 base stations
    • 1 phone system with 12 lines
    • 4 ring down phone lines
    • 10 TIF - Telephone Interfaces
    Cameras
    • 2 Sony HDC 4300 Camera
    • 13 Sony HDC 2500 Camera
    • 1 Sony HDC 2400 Camera
    • 1 Sony PDWXD ENG Camera Package
    • 5 Sony HDLA Large Lens Adapter
    • 5 Hard Camera Panhead & Tripod
    • 6 HH Camera Panhead & Tripod
    • 2 Sets HH Camera Wheels
    • 15 CCUs on Board
    • 20 CCUs Wired For
    Lenses
    • 1 Canon 100x9.3 Hard Lens
    • 4 Canon 86x9.3 Hard Lens
    • 5 Canon Lens 21:1 Hand Held Lens
    • 5 Canon 4.7 Wide Angle Lens
    Support Equipment
    • Utah Scientific
    • HD video - 384 inputs x 812 outputs
    • Embed/De-embed 96 inputs x 96 outputs (16 channels)
    • MADI 21 inputs x 21 outputs
    • 36 Utility Frame Syncs/Processors
    • 8 HD Video Over Fiber Transmitters
    • 2 Embedders with 16 Audio Channels
    • 4 Embedders/De-Embedders 16 Audio Channels
    • 2 Light kits
    • Monitors: 8- 18" LCD HDSDI 6- 9" LCD
    Audio
    • Calrec Alpha Digital Audio Console
    • Bluefin DSP Processing
    • 340 Channels with full signal processing
    • 48 Multi-track busses
    • 20 Aux busses
    • 96 Fader, A/B Layers
    • 128 analog inputs & 128 analog outputs
    • 64 AES stereo inputs & 64 AES stereo outputs
    • 10 MADI inputs & 10 MADI outputs
    • 2 Hydra I Field Boxes (48x16)
    • 1 Dolby Encoder/Decoder Package
    • 1 DTS Neural Up-Mix/Down-Mix Package
    • 2 Digicart
    • 1 CD Player
    Microphones
    • 9 Announcer Headsets
    • 9 Daltech Announce Consoles
    • 14 Short Shotgun Microphones
    • 11 Long Shotgun Microphones
    • 15 Stick Microphones
    • 9 Lavalier Microphones
    Record & Playback
    • 7 EVS XT3 6 Channel LSM
    • 1 EVS XT3 8 Channel LSM
    • 1 EVS XT3 12 Channel LSM
    • 1 EVS XS3 6 Channel Spotbox
    • 1 EVS X-File[3]
    • 2 EVS XHub[3]
    • 1 USB Recorder/Streamer
    Graphics
    • Upon Request
    Cables
    • 9mm SMPTE: 16 -500' 26 -250' 5 -200' 13 -100'
    • 9mm SMPTE Mult: 2 (5x125')
    • Mini Triax: 3 -500' 5 -250' 7 -100' 7 -50'
    • Mini Triax Mult: 1
    • DT12 5 -500' 8 -250' 14 -100'
    • 24 DT12 Fanout sets
    • 7 DT12 Breakout Box(es)
    • 4 Pair Mult 3 -100'
    • Assorted Single Line XLR
    • TAC 12 ST-St 2 -1000' 5 -500' 1 -250' 2 -150' 7 -25' or less
    • TAC 12 Military 1 -100' 3 -500' 1 -250'
    • 2 TAC 12 Military Fanout
    • TAC 6 ST-ST 2 -500'
    • TAC 4 ST-ST 1 -100'
    • 5 Pair HD Coax Loom 5 -125'
    • Assorted Single Line Coax

    monitor walls

    NCPVII Production Monitor Wall
    NCPVII Tape Monitor Wall

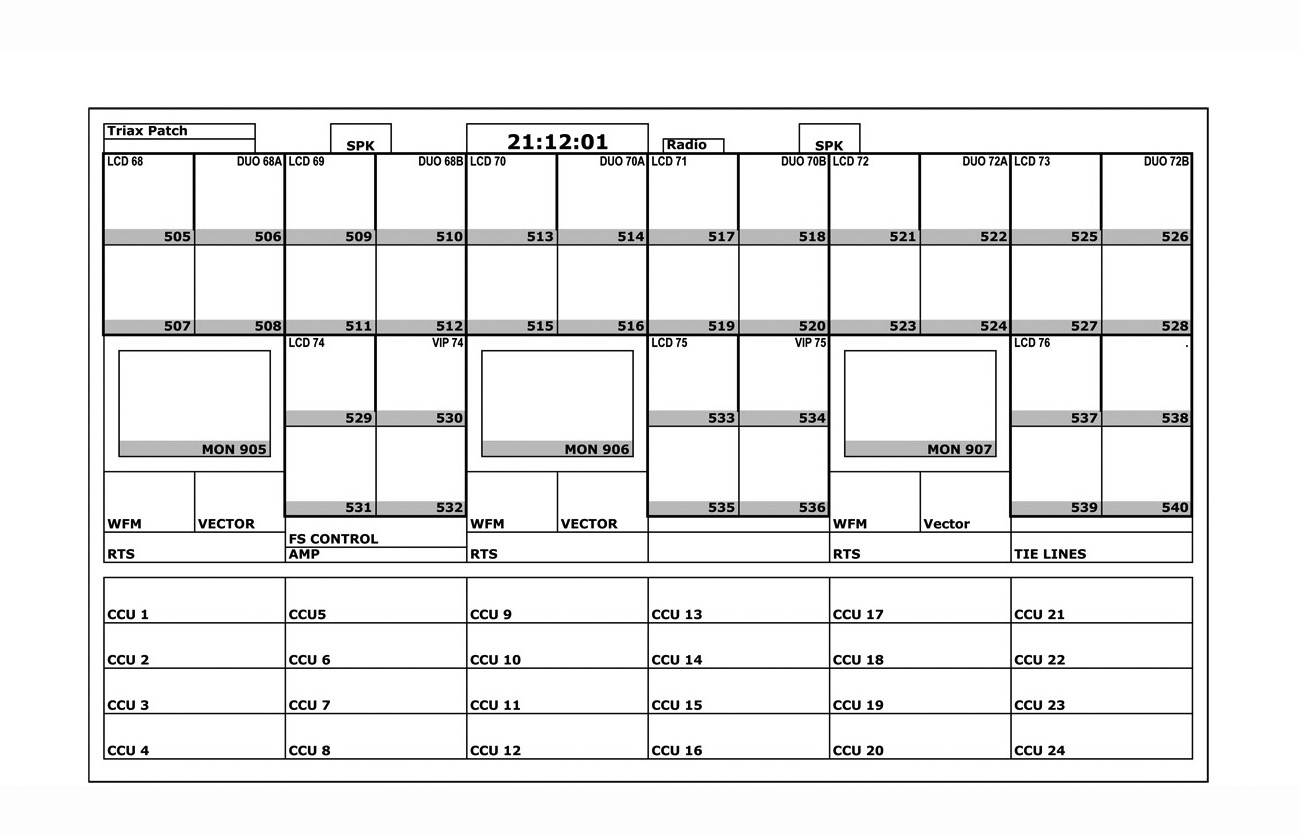

    NCPVII Video Monitor Wall
    NCPVII Monitor Wall (B Unit)
    NCPVII Production Monitor Wall (B Unit)

    floor plans

    Download Floor Plans
    go up
    NCPVII A Floor Plan
    NCPVII B Floor Plan
