Supershooter CBS

NEP | US

Supershooter CBS is an HD mobile unit capable of 1080p, HDR or 4K. Trailers include Supershooter CBS A, B, C, and D.

What’s a Rich Text element?

The rich text element allows you to create and format headings, paragraphs, blockquotes, images, and video all in one place instead of having to add and format them individually. Just double-click and easily create content.

Static and dynamic content editing

A rich text element can be used with static or dynamic content. For static content, just drop it into any page and begin editing. For dynamic content, add a rich text field to any collection and then connect a rich text element to that field in the settings panel. Voila!

How to customize formatting for each rich text
  • Headings, paragraphs, blockquotes, figures, images, and figure captions can all be styled after a class is added to the rich text element using the "When inside of" nested selector system.
  • ‍Headings, paragraphs, blockquotes, figures, images, and figure captions can all be styled after a class is added to the rich text element using the "When inside of" nested selector system.

Headings, paragraphs, blockquotes, figures, images, and figure captions can all be styled after a class is added to the rich text element using the "When inside of" nested selector system.

Vehicle-Specific Information
  • A, B & C Units Double Expando: 64' long & 21' wide expanded
  • D Unit no expando: 58' long & 12' wide with stairs
  • A, C and D Units: 208 Volts, 3 Phase, 200 Amps
  • B-Unit: 208 Volts, 3 Phase, 400 Amps or2 - 200 Amps
Production
  • GVG Kayenne K-Frame Switcher, 192 Inputs / 96 Outputs, 9 M/E
  • 16 IDPM / eDPM / 2D DPM
  • Still Store Movies
  • Flexkey
  • DoubleTake
  • Elite Package
Communications
  • Adam Intercom System - 460 Ports
  • 24 dual listen beltpacks
  • 18 single muff headsets
  • 12 double muff headsets
  • 12 IFB beltpacks
Cameras
  • 14 Sony HDC3500 Camera
  • 7 Sony HDC5500 Camera
  • 11 Sony HDLA Large Lens Adapter
  • 11 Hard Camera Panhead & Tripod
  • 14 HH Camera Panhead & Tripod
  • 21 CCUs on Board
  • 36 CCUs Wired For
Lenses
  • 3 Canon 122x8.2 Hard Lens
  • 8 Cannon 111x8.3 Hard Lens
  • 14 Fujinon 23X7.6 Hand Held Lens
  • 3 Fujinon 18x5.5 Wide Angle Lens
  • 4 Fujinon HA14.4x4.5 Wide Angle Lens
Support Equipment
  • NEP TFC/Cisco Router
  • HDI/SDI Video - 800 inputs x 900 outputs
  • MADI 36 inputs x 36 outputs
  • AES 64 inputs x 64 outputs
  • Analog audio 96 inputs x 96 outputs
  • 16 Utility Frame Syncs/Processors
  • 10 HD Video over Fiber Transmitters
  • 3 Fiber Booth/Field Kits
  • 2 Light kits
  • Monitors: 3 -26" LCD 4 -24" LCD 2 -23" LCD 20 -21" HD LCD 4 -9" LCD
Audio
  • Calrec Apollo Digital Audio Console with Bluefin 2 High Density Signal Processing
  • 1020 Channels with full signal processing
  • 128 Mix busses for Group and Main Outputs
  • 96 Multi-track busses
  • 48 Aux busses
  • 72 Fader, A/B Layers
  • 96 analog inputs & 96 analog outputs
  • 96 AES inputs & 96 AES outputs
  • 6 MADI inputs & 6 MADI outputs
  • Calrec Artemis Beam Digital Audio Console
  • Bluefin 2 High Density Signal Processing
  • 340 Channels with full signal processing
  • 128 Mix busses for Group and Main Outputs
  • 64 Multi-track busses
  • 32 Aux busses
  • 64 Fader, A/B Layers
  • 64 analog inputs & 64 analog outputs
  • 64 AES inputs & 64 AES outputs
  • 4 MADI inputs & 4 MADI outputs
  • 10 Hydra II Field Boxes
  • 1 DTS Neural Up-Mix/Down-Mix Package
  • 1 ENCO System
  • 1 Digicart
  • 1 CD Player
Microphones
  • 20 Announcer Headsets
  • 12 Studio Tech Announce Consoles
  • 6 Short Shotgun Microphones
  • 12 Long Shotgun Microphones
  • 40 Stereo Shotgun Microphones
  • 12 Stick Microphones
  • 12 Lavalier Microphones
Record & Playback
  • 8 EVS XT VIA 12 Channel LSM 10 GB
  • 1 EVS XS VIA 6 Channel Spotbox 10 GB
  • XNET VIA 10 G Network
  • 2 EVS X-File[3]
  • 5 EVS Xhub[3]
  • 5 EVS IP Director
  • 4 EVS XT Access
Graphics
  • Upon request
Cables
  • 9mm SMPTE: 10 -500' 10 -250' 25 -100' 25 -50'
  • 9mm SMPTE Mult: 3 (4x250')
  • Mini Triax: 5 -500' 5 -250' 10 -100' 20 -50'
  • Triax Mult: 2
  • DT12 2 -500' 6 -250' 8 -100' 4 -50'
  • 10 DT12 Fanout sets
  • 8 DT12 Breakout Box(es)
  • 4 Pair Mult 6 -100' 6 -50' 6 -25'
  • 9 4 Pair Fanout to XLR Female
  • 9 4 Pair Fanout to XLR Male
  • TAC-12 ST-ST 4 - 250' 10 -500' 8 -200' or less
  • 5 Pair HD Coax Loom 5 -150'
Supershooter CBS Graphics Monitor Wall
Supershooter CBS-C Flex1 Monitor Wall
Supershooter CBS-C Flex3 Monitor Wall
Supershooter CBS-C Record and Replay Monitor Wall
Supershooter CBS Production Monitor Wall
Supershooter CBS-A Floor Plan Football
Supershooter CBS-A Floor Plan Golf
Supershooter CBS-B Floor Plan
Supershooter CBS-C Floor Plan

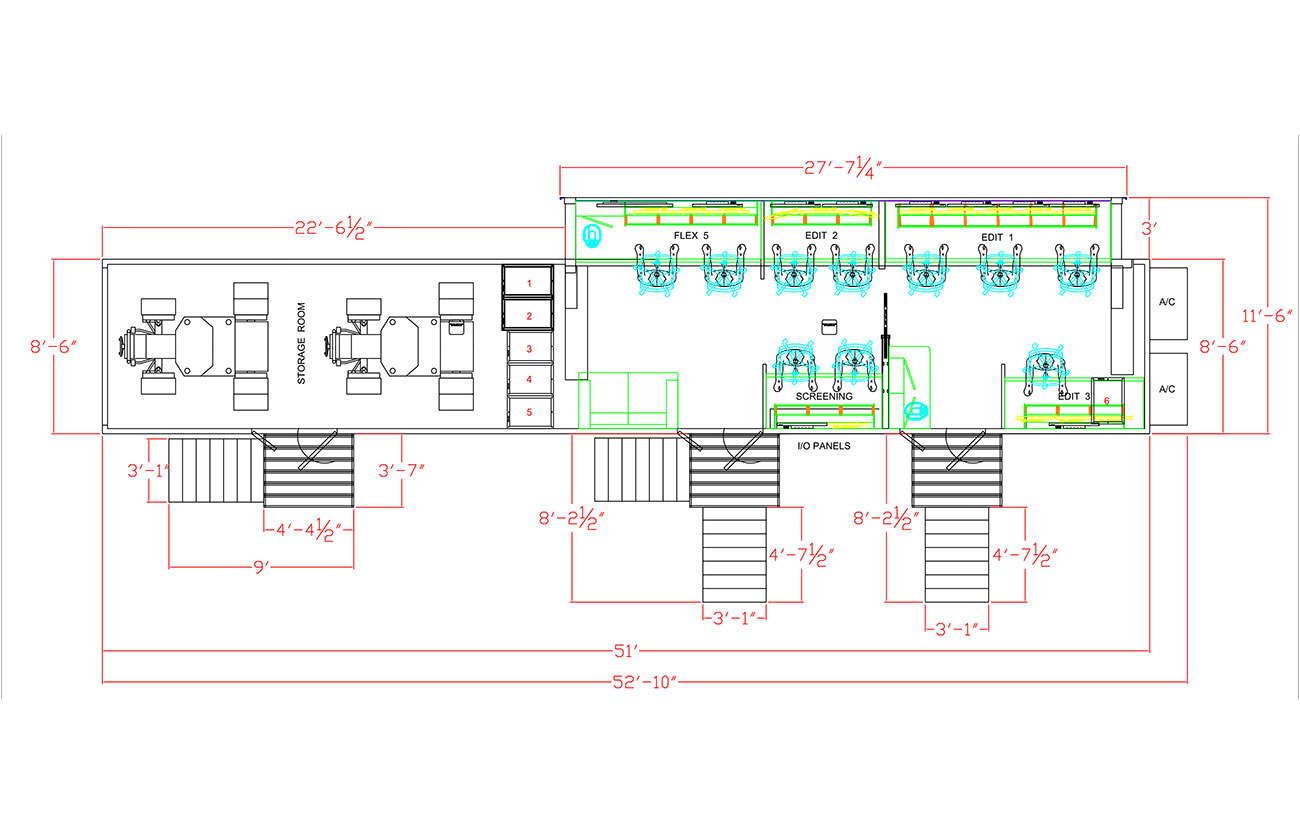

Supershooter CBS-D Floor Plan
