PART OF NEP'S NEXT GENERATION OF MOBILE UNITS, ND1 IS ONE OF THE WORLD'S LARGEST HD PRODUCTION TRUCKS. A POWERFUL HD SUPER TWIN, ND1 RIDES WITH A C-UNIT TO ACCOMMODATE RECORD/REPLAY AND A D-UNIT THAT HAULS EQUIPMENT.

What’s a Rich Text element?

The rich text element allows you to create and format headings, paragraphs, blockquotes, images, and video all in one place instead of having to add and format them individually. Just double-click and easily create content.

Static and dynamic content editing

A rich text element can be used with static or dynamic content. For static content, just drop it into any page and begin editing. For dynamic content, add a rich text field to any collection and then connect a rich text element to that field in the settings panel. Voila!

How to customize formatting for each rich text
  • Headings, paragraphs, blockquotes, figures, images, and figure captions can all be styled after a class is added to the rich text element using the "When inside of" nested selector system.
  • ‍Headings, paragraphs, blockquotes, figures, images, and figure captions can all be styled after a class is added to the rich text element using the "When inside of" nested selector system.

Headings, paragraphs, blockquotes, figures, images, and figure captions can all be styled after a class is added to the rich text element using the "When inside of" nested selector system.

Vehicle-Specific Information
  • A -Unit: 63'.6" long x 13'6" high x 20'.9" wide expanded without tractors
  • Double Expando
  • TRACTOR # 10227, 1XPWDB9X4BN753747, PA- AG11921
  • TRAILER VIN # 1M9VS532XE1298257, PA- PT572A0
  • TOTAL WEIGHT A UNIT 71,400 LBS
  • 208 Volts, 3 Phase, 200 Amps
  • B-Unit: 63'.6" long x 13'6" high x 20'.9" wide expanded without tractors
  • Double Expando
  • TRACTOR # 10307, 1XPBDP9X6HD445951, PA-AG58823
  • TRAILER VIN # 1M9VS5328E1298256, PA- PT571A9
  • TOTAL WEIGHT B UNIT 78,880 LBS
  • 208 Volts, 3 Phase, 400 Amps or 2 - 200 Amps
  • C-Unit: 57'6" long x 13'6" high x 20'9" wide expanded without tractor
  • Double Expando
  • TRACTOR #10232, 1XPHD49X9ED217950, PA-AG11799
  • TRAILER VIN # 1M9VS5321E1298258, PA- XKM2497
  • TOTAL WEIGHT C UNIT 72,840 LBS
  • 208 Volts, 3 Phase, 200 Amps
  • D-Unit
  • No Expando
  • TRACTOR # 10222, 1XPHD49X7DD194358, PA- AG11919
  • TRAILER VIN # 1PT01JAH619007233, PA- PT8658H
  • TOTAL WEIGHT D UNIT 66,220 LBS
Production
  • GVG Kayenne K-Frame Switcher, 192 Inputs / 96 Outputs, 9 M/E
  • 16 IDPM / eDPM / 2D DPM
  • Still Store Movies
  • Flexkey
  • DoubleTake
  • Elite Package
Communications
  • Adam Intercom System - 464 Ports
  • 30 dual listen beltpacks
  • 36 single muff headsets
  • 12 double muff headsets
  • 16 IFB Beltpacks
  • 6 walkie talkies with 2 base stations
  • 10 TIF - Telephone Interfaces
  • 6 QKT
Cameras
  • 20 Sony HDC2500 Camera
  • 8 Sony HDC4300 Camera
  • 16 Sony HDLA Large Lens Adapter
  • 2 Sony F-55 ENG Camera Package
  • 2 POV Camera
  • 11 Hard Camera Panhead & Tripod
  • 10 HH Camera Panhead & Tripod
  • 28 CCUs on Board
  • 30 CCUs Wired For
Lenses
  • 5 Canon 100x9.3 Hard Lens
  • 8 Canon 95x8.6 Hard Lens
  • 10 Canon Lens 22:1 Hand Held Lens
  • 1 Canon 4.7 Wide angle Lens
  • 2 Canon 4.3 Wide angle Lens
Support Equipment
  • Evertz EQX
  • HD video - 576 inputs x 540 outputs
  • 288 inputs x 288 outputs embed/de-embed( 16 channels)
  • MADI 17 inputs x 17 outputs
  • AES 224 inputs x 224 outputs
  • Analog audio 256 inputs x 256 outputs
  • 18 Utility Frame Syncs/Processors
  • 10 Color Correctors
  • 10 HD Video over Fiber Transmitters
  • 2 Light kits
  • 2 Fiber Booth/Field Kits
  • Monitors:
  • 6 - 20" LCD
Audio
  • Calrec Apollo Digital Audio Console with Bluefin 2 High Density Signal Processing
  • Bluefin 2 High Density Signal Processing
  • 1020 Channels with full signal processing
  • 128 Mix busses for Group and Main Outputs
  • 96 Multi-track busses
  • 48 Aux busses
  • 72 Fader, A/B Layers
  • 96 analog inputs & 96 analog outputs
  • 96 AES inputs & 96 AES outputs
  • 8 MADI inputs & 8 MADI outputs
  • 4 Hydra II Field Boxes
  • 1 Dolby Encoder/Decoder Package
  • 1 DTS Neural Up-Mix/Down-Mix Package
  • 2 Digicart
  • 1 CD Player
Microphones
  • 8 Announcer Headsets
  • 8 Daltech Announce Consoles
  • 10 Short Shotgun Microphones
  • 8 Long Shotgun Microphones
  • 3 Stereo Shotgun Microphones
  • 12 Stick Microphones
  • 8 Lavalier Microphones
Record & Playback
  • 5 EVS XT3 12 Channel LSM 10 GB
  • 4 EVS XT3 6 Channel LSM 10 GB
  • 1 EVS XT3 4 Channel Spotbox 10 GB
  • 3 EVS X-File[3]
  • 4 EVS IP Director
  • 2 EVS XT Access
  • 2 EVS Database Server
  • 5 EVS Xhub[3]
  • 1 Sony SRW-5500 HDCam & HDCam SR VTR
  • 1 Sony HDW-M2000 HDCam & IMX VTR
  • 3 Sony HDW-M1800 HDCam VTR
  • 2 Sony PDW- F1600 HD XDCAM VTR
  • 4 DVD Recorder w/ remote control
Graphics
  • 2 Chyron Mosaic XL
Cables
  • 9mm SMPTE: 20 -500' 19 -250' 31 -100' 12 -50' 7 -25'
  • 9mm SMPTE Mult: 1(5x125')
  • Mini Triax: 17 -100' 13 -50'
  • DT12 3 -500' 6 -250' 12 -100'
  • 8 DT12 Fanout sets
  • 5 DT12 Breakout Box(es)
  • 4 Pair Mult 8 -100' 4 -50' 5 -25'
  • Assorted Single Line XLR
  • TAC-12 Military 5 -250' 10 -1000' 10 -1500'
  • TAC-12 ST-ST 1 - 250 1 -500'
  • TAC-12 Military-ST Breakout(s) 11
  • 5 Pair HD Coax Loom 16 -125'
  • 10 Pair HD Coax Loom 8 -25'
  • Assorted Single Line Coax
  • 32 sets of 75' 4/0 Camlock Power Cable
ND1 Graphics Monitor Wall

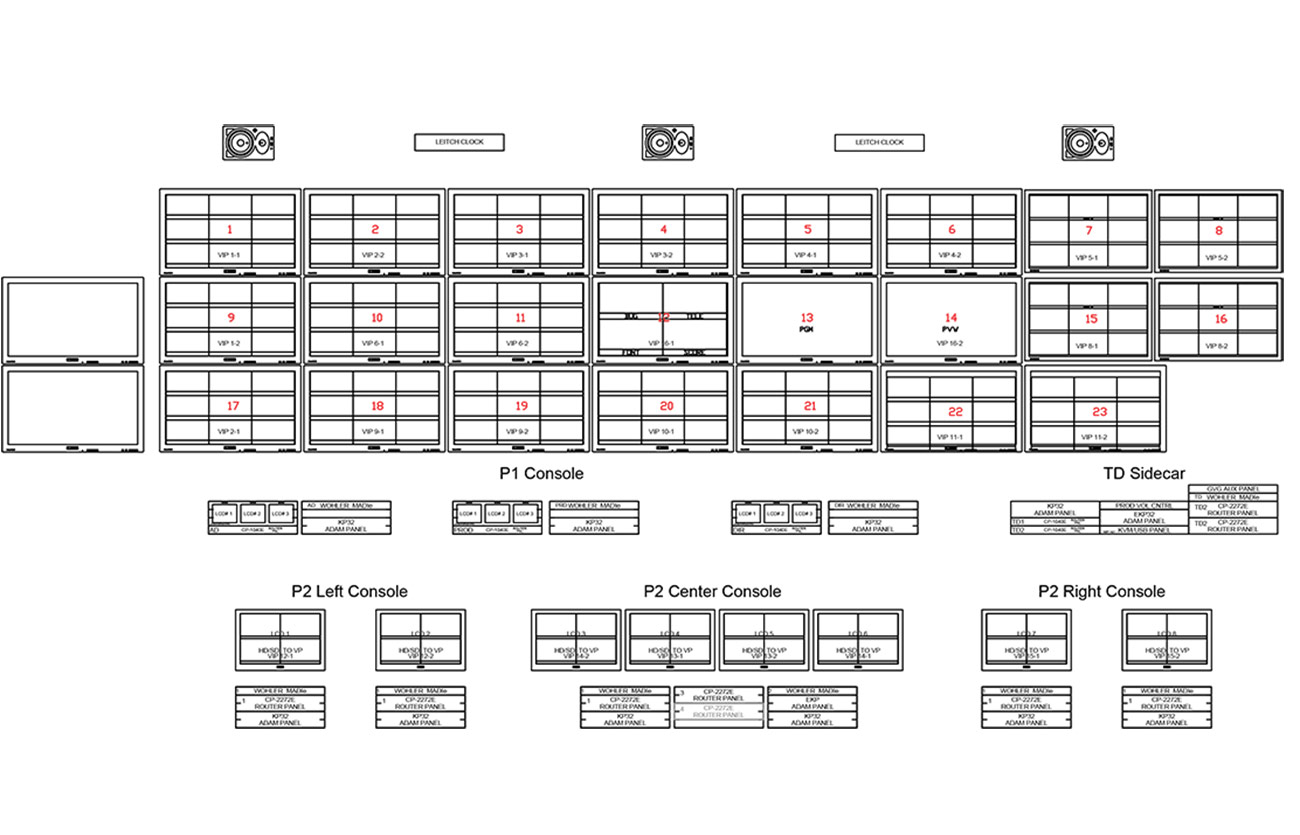

ND1 Production Monitor Wall
ND1 Tape C1 Monitor Wall
ND1 Tape C2 Monitor Wall
ND1 Tape C3 Monitor Wall
ND1 Tape Monitor Wall
ND1 A Floor Plan
ND1 B Floor Plan
ND1 C Floor Plan
