Supershooter 22

NEP | US

Supershooter 22 is an HD mobile unit capable of 1080p or 4k. It travels with its support B unit, ST22.

SPECIFICATIONS MONITOR WALLS FLOOR PLANS

specifications

What’s a Rich Text element?

The rich text element allows you to create and format headings, paragraphs, blockquotes, images, and video all in one place instead of having to add and format them individually. Just double-click and easily create content.

Static and dynamic content editing

A rich text element can be used with static or dynamic content. For static content, just drop it into any page and begin editing. For dynamic content, add a rich text field to any collection and then connect a rich text element to that field in the settings panel. Voila!

How to customize formatting for each rich text

Headings, paragraphs, blockquotes, figures, images, and figure captions can all be styled after a class is added to the rich text element using the "When inside of" nested selector system.
‍Headings, paragraphs, blockquotes, figures, images, and figure captions can all be styled after a class is added to the rich text element using the "When inside of" nested selector system.

Headings, paragraphs, blockquotes, figures, images, and figure captions can all be styled after a class is added to the rich text element using the "When inside of" nested selector system.

Vehicle-Specific Information

A & B Units - 53' EMS expando trailer
208 Volt 3 Phase
A Unit: 1 400 amp or 2 200 amp Service Required
B Unit: 1 200 amp Service Required

Production

GVG Kayenne K-Frame Switcher
16 IDPM / eDPM / 2D DPM
Still Store Movies
Flexkey
DoubleTake
Elite Package

Communications

Adam Intercom System - 320 Ports
10 dual listen beltpacks
10 DANTE beltpacks
10 IFB beltpacks
20 single muff headsets
15 double muff headsets
12 walkie talkies with 2 base stations
1 phone system with 12 lines
6 TIF - Telephone Interfaces
4 Ring Downs
4 QKT

Cameras

2 Sony HDC2500 Camera
4 Sony HDC4300 Camera
5 Sony HDC5500 Camera
9 Sony HDLA Large Lens Adapter
1 Sony PXWX500 SXS ENG Camera
9 Hard Camera Panhead & Tripod
8 HH Camera Panhead & Tripod
14 CCUs on Board

Lenses

8 Canon 122x Hard Lens
2 Canon 22:1 Hand Held Lens
4 Canon 24x Hand Held Lens
3 Canon 20x5 Wide Angle Lens
2 Canon 14x4.3 Wide Angle Lens

Support Equipment

Evertz EQX
HD video - 324 inputs x 1152 outputs
224 inputs x 256 outputs embed/de-embed
MADI 35 inputs x 35 outputs
AES 192 inputs x 192 outputs
Analog audio 96 inputs x 96 outputs
2 AJA FSD HDR
10 UDX Card
1 Light kits (5 Lights with stands)
2 Fiber Booth/Field Kits
Monitors: 10-21" LCD

‍

Audio

Calrec Apollo Digital Audio Console with Bluefin 2 High Density Signal Processing
1020 Channels with full signal processing
128 Mix busses for Group and Main Outputs
96 Multi-track busses
48 Aux busses
72 Fader, A/B Layers
96 analog inputs & 96 analog outputs
64 AES inputs & 64 AES outputs
6 MADI inputs & 6 MADI outputs
2 Hydra II Field Boxes (24 x 8 in field kits)
Calrec Artemis Beam Digital Audio Console with Bluefin 2 High Density Signal Processing
340 Channels with full signal processing
128 Mix busses for Group and Main Outputs
64 Multi-track busses
32 Aux busses
48 Fader, A/B Layers
64 analog inputs & 64 analog outputs
64 AES inputs & 64 AES outputs
4 MADI inputs & 4 MADI outputs
2 Neural Up-Mix/Down-Mix Package
2 Digicart
2 CD Player
1 Spot On Replay System

Microphones

12 Announcer Headsets
8 Studio Tech Model220 Announce Consoles
4 Falcon Announce Consoles
2 Glensound Announce Consoles
18 Stick Microphones
18 Short Shotgun Microphones
8 Long Shotgun Microphones
8 Stereo Short Shotgun Microphones
8 Lavalier Microphones

Record & Playback

5 EVS XTVIA 12 Channel LSM 10 GB
1 EVS XSVIA 6 Channel Spot Box
2 EVS X-File[3]
2 EVS IP Director
3 EVS Xhub[3]
1 EVS XHub VIA
1 EVS XT Access
Wired for 17 EVS
1 USB Recorder
1 Sony PMWRX50 SxS Reader

Graphics

Upon request

Cables

9mm SMPTE: 5 -500' 10 -250' 10 -100' 10 -50'
9mm SMPTE Mults: 4
Mini Triax 5 -250' 5 -100'
Mini Triax Mult: 1
DT12 1 -500' 8 -250' 10 -125
15 DT12 Fanout sets
8 DT12 Breakout Box(es)
4 Pair Mult 4 -100' 4 -50' 4 -25'
Assorted Single Line XLR
TAC12 ST-ST 2 -1500' 2 -1000' 6 -500' 8 -250' 4-150' 6-25'
TAC24 ST-ST 1- 1000'
3 TAC12 Fanout sets
TAC12 Military 3 -250'
10 Pair 3G Coax Loom 5 -125'
20 Pair 3G Coax Loom 1 -75'
5 Pair HD Coax Loom 2 -10' 10 -125'
Assorted Single Line Coax
2 sets of 75' 4/0 Camlock Power Cable

‍

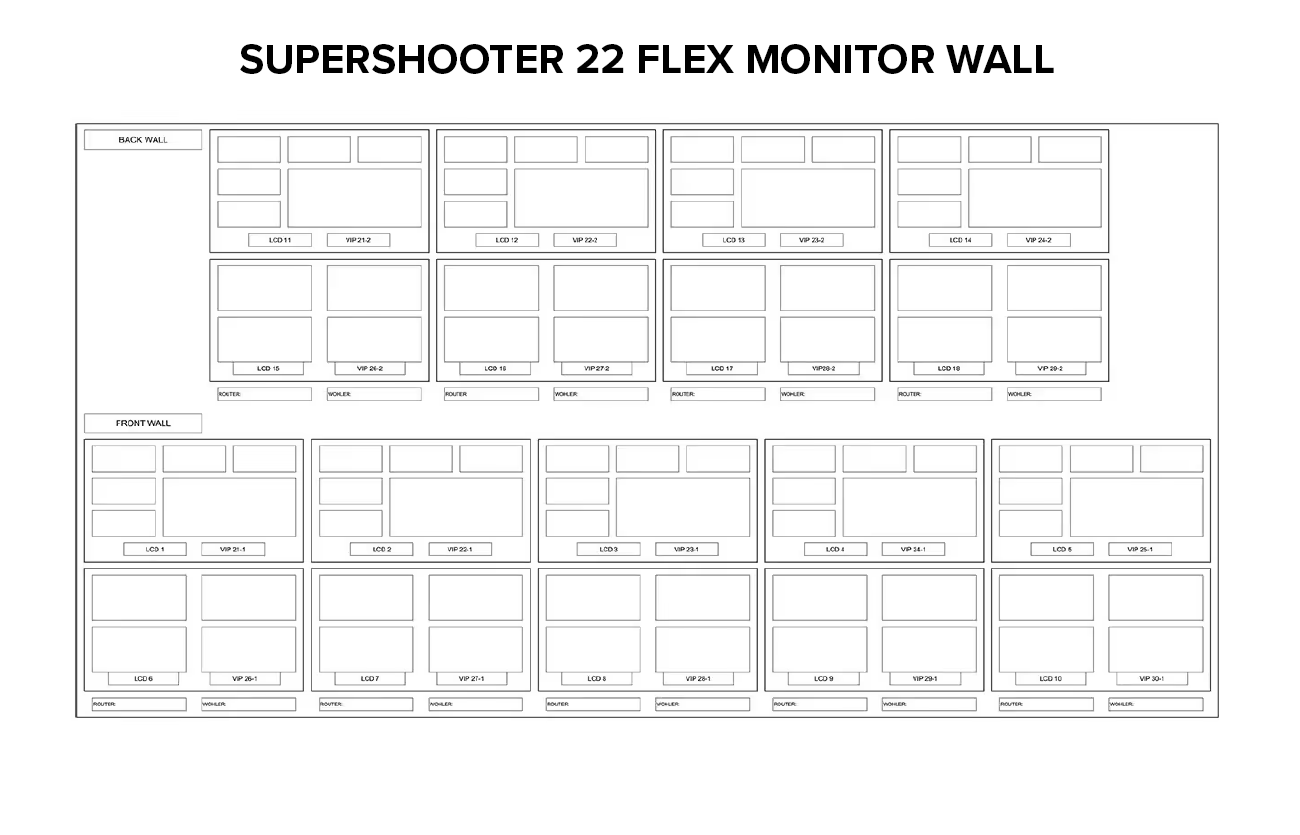

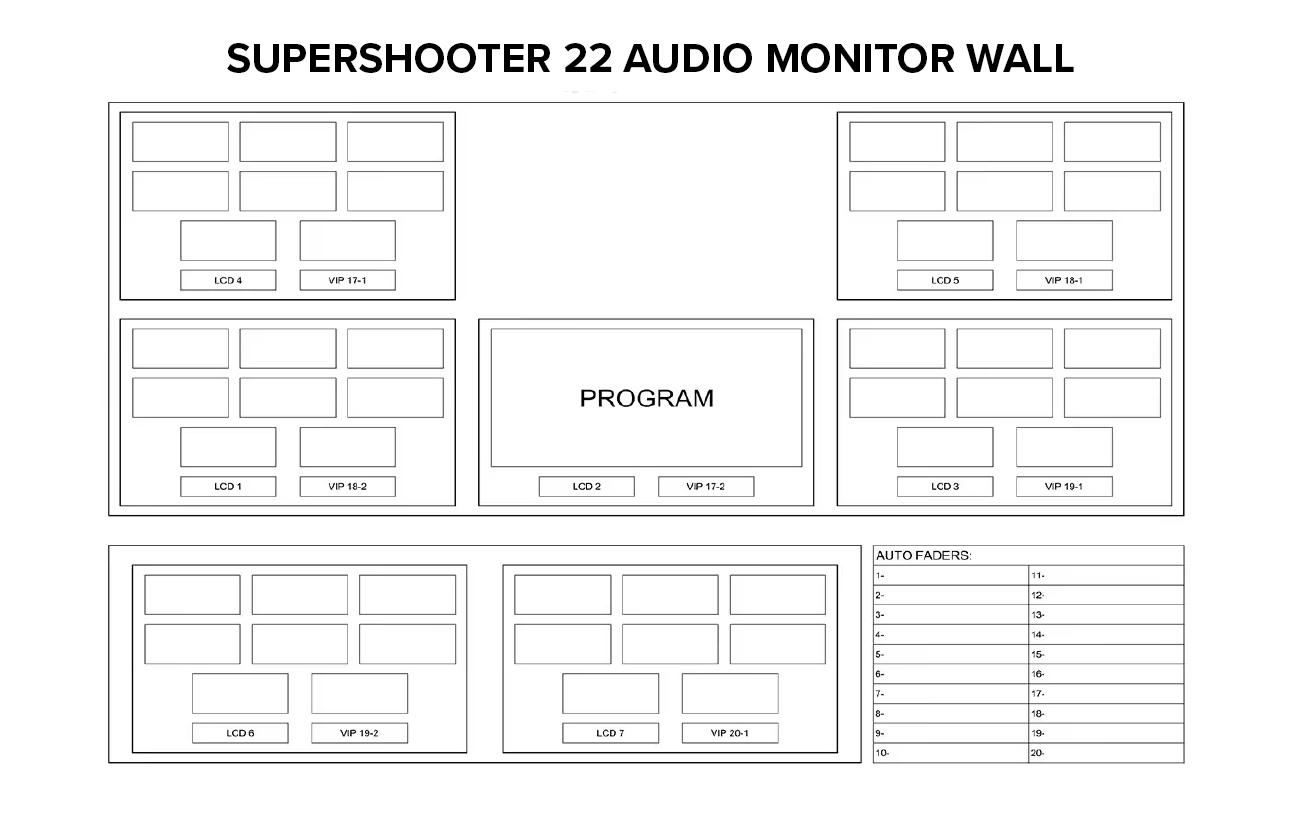

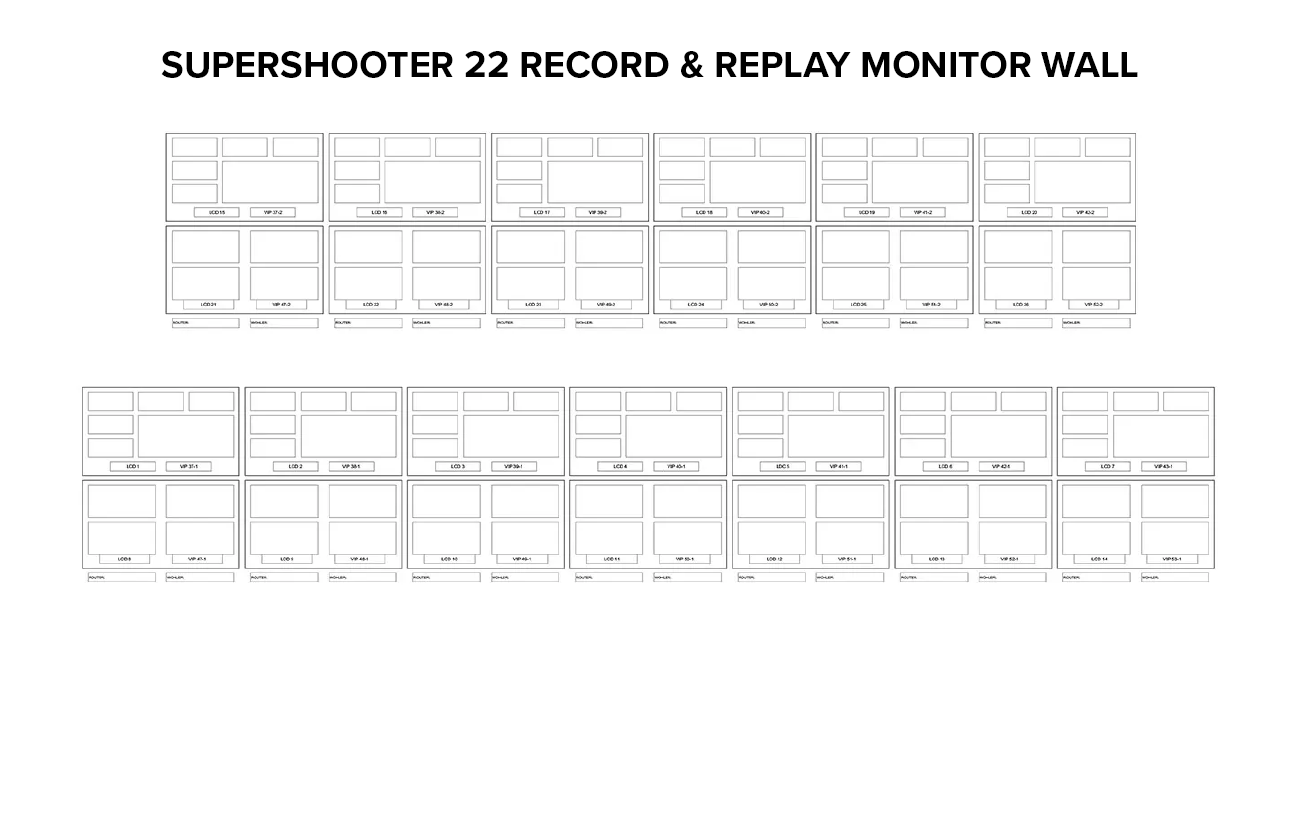

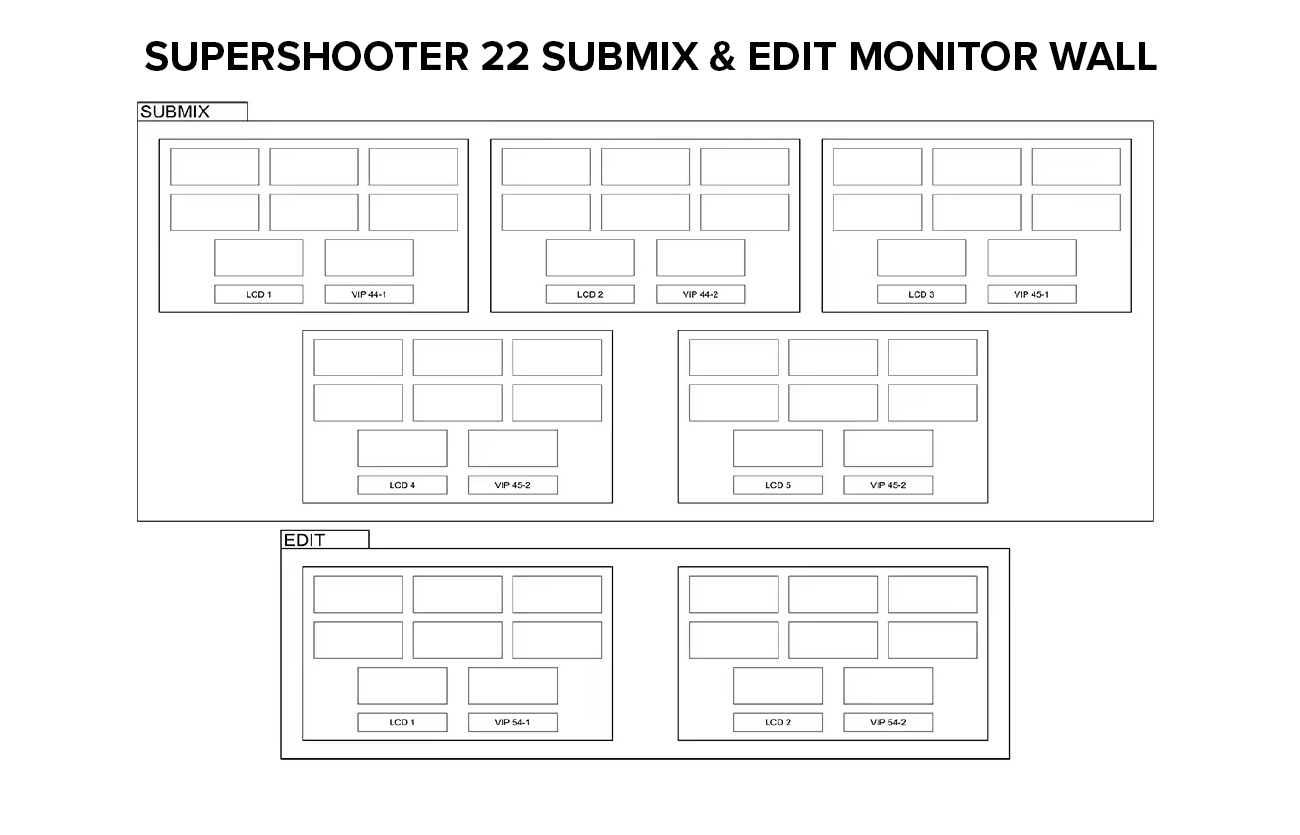

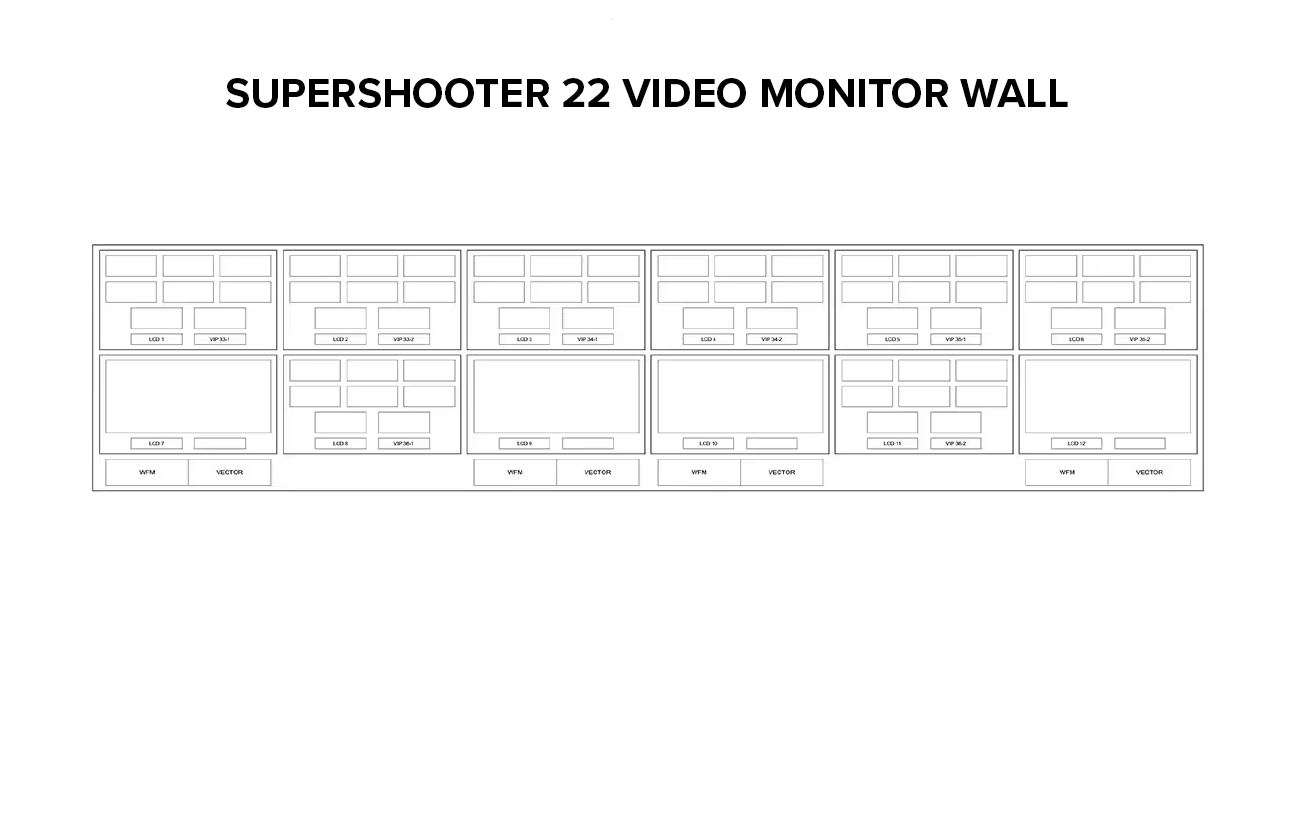

monitor walls

Download Monitor Walls

go up

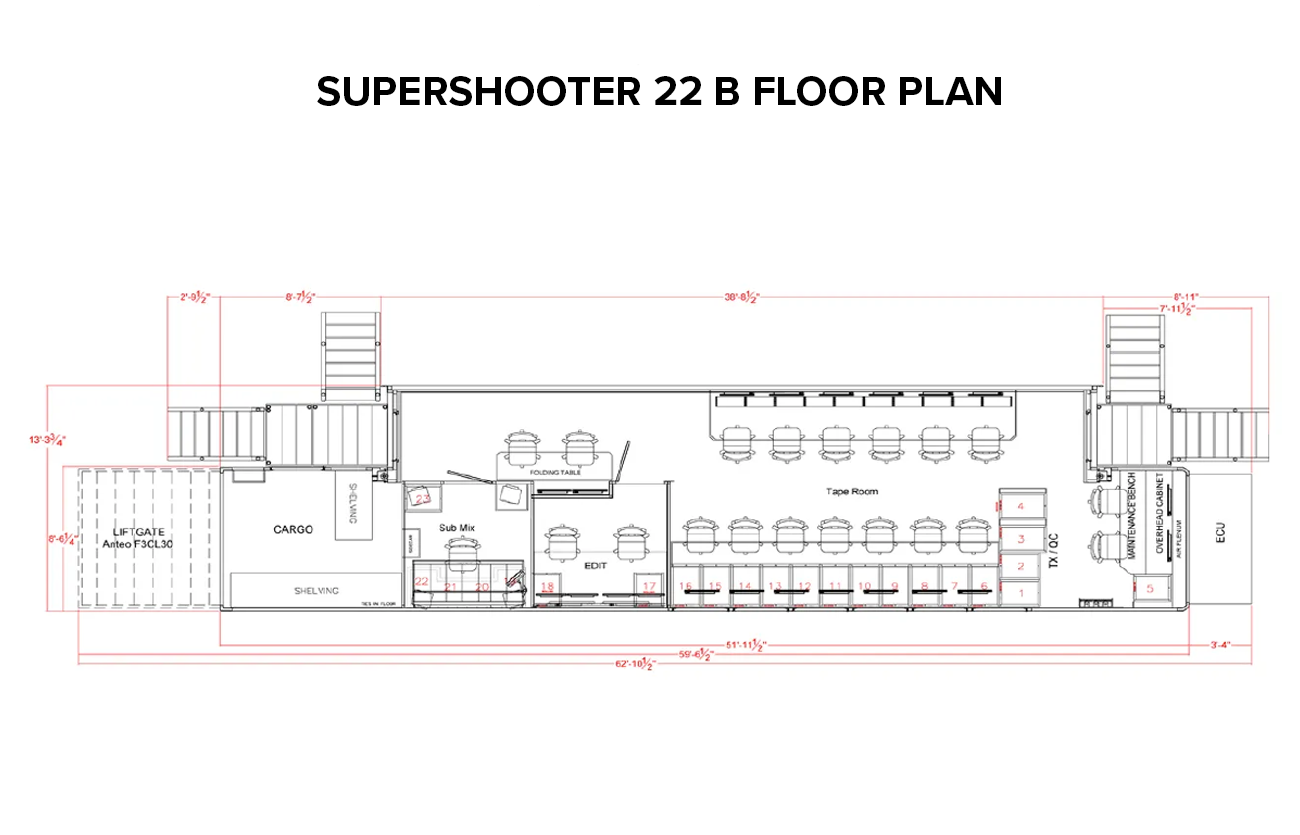

floor plans

Download Floor Plans

go up
