ND6

ND6

NEP | United States

ND6 features multi-channel embedded audio, a large, three-tier control room, back-to-back layout in tape, virtual monitor walls throughout, and can easily scale to meet a variety of production sizes and types.

What’s a Rich Text element?

The rich text element allows you to create and format headings, paragraphs, blockquotes, images, and video all in one place instead of having to add and format them individually. Just double-click and easily create content.

Static and dynamic content editing

A rich text element can be used with static or dynamic content. For static content, just drop it into any page and begin editing. For dynamic content, add a rich text field to any collection and then connect a rich text element to that field in the settings panel. Voila!

How to customize formatting for each rich text
  • Headings, paragraphs, blockquotes, figures, images, and figure captions can all be styled after a class is added to the rich text element using the "When inside of" nested selector system.
  • ‍Headings, paragraphs, blockquotes, figures, images, and figure captions can all be styled after a class is added to the rich text element using the "When inside of" nested selector system.

Headings, paragraphs, blockquotes, figures, images, and figure captions can all be styled after a class is added to the rich text element using the "When inside of" nested selector system.

Vehicle-Specific Information
  • 60' long x 13'6" high x 20' wide, expanded, stairs down
  • Curbside Expando
  • TRACTOR # 542510
  • 1XKAD49X5EJ1410010
  • PA - AG19627
  • TRAILER VIN # 1U9EX5329CS123331
  • PA- PT9620R
  • TOTAL WEIGHT 80,000 LBS
  • 400 amp, 208 volt, 3 phase OR 2 - 200amp, 208 volt, 3 phase
Production
  • GVG Kayenne K-Frame Switcher, 128 Inputs / 96 Outputs, 5 M/E
  • 16 IDPM / eDPM / 2D DPM
  • Still Store Movies
  • Flexkey
  • DoubleTake
  • Elite Package
  • Virtual Monitor Walls with "The Wall" User Interface
Communications
  • Adam Intercom System - 144 Ports
  • 21 dual listen beltpacks
  • 15 single muff headsets
  • 12 double muff headsets
  • 12 IFB Beltpacks
  • 6 walkie talkies with 2 base stations
  • 1 phone system with 16 lines
  • 4 ring down phone lines
  • 4 TIF - Telephone Interfaces
  • 6 QKT
Cameras
  • 10 Sony HDC2500 Camera
  • 2 Sony HDC4300 Camera
  • 6 Sony HDLA Large Lens Adapter
  • 1 Sony PDW-F800 XDCAM ENG Camera Package
  • 6 Hard Camera Panhead & Tripod
  • 6 HH Camera Panhead & Tripod
  • 12 CCUs on Board
  • 16 CCUs Wired For
Lenses
  • 3 Canon 100x9.3 Hard Lens
  • 3 Canon 86x9.3 Hard Lens
  • 6 Canon Lens 22:1 Hand Held Lens
  • 2 Canon 4.3 Wide angle Lens
Support Equipment
  • PESA
  • HD video - 272 inputs x 272 outputs( 16 channels)
  • MADI 256 inputs x 256 outputs
  • AES 512 inputs x 640 outputs
  • Analog audio 128 inputs x 128 outputs
  • 18 Utility Frame Syncs/Processors
  • 5 HD Video over Fiber Transmitters
  • 2 Light kits
  • 1 Fiber Booth/Field Kits
  • Monitors:
  • 6 - 22" LCD, 4 - 9" SDI/Analog
Audio
  • Calrec Artemis Beam Digital Audio Console
  • Bluefin 2 High Density Signal Processing
  • 340 Channels with full signal processing
  • 128 Mix busses for Group and Main Outputs
  • 64 Multi-track busses
  • 32 Aux busses
  • 64 Fader, A/B Layers
  • 96 analog inputs & 96 analog outputs
  • 96 AES inputs & 96 AES outputs
  • 6 MADI inputs & 6 MADI outputs
  • 1 Hydra II Field Boxes
  • 2 Digicart
  • 1 CD Player
Microphones
  • 6 Announcer Headsets
  • 7 Daltec Announce Consoles
  • 6 Short Shotgun Microphones
  • 8 Long Shotgun Microphones
  • 7 Stick Microphones
  • 8 Lavalier Microphones
  • Lance Announce ADX 120 system available upon request
Record & Playback
  • 2 EVS XT3 12 Channel LSM 10 GB
  • 1 EVS XT3 8 Channel LSM 10 GB
  • 3 EVS XT3 6 Channel LSM 10 GB
  • 1 EVS XS3 4 Channel Spotbox 10 GB
  • 1 EVS X-File[3]
  • 1 EVS IP Director
  • 2 EVS Xhub[3]
  • 1 Sony HDW-M2000 HDCam & IMX VTR
  • 2 Sony PDW- F1600 HD XDCAM VTR
  • 3 DVD Recorder w/ remote control
Graphics
  • 1 Chyron Hyper X3
  • 1 Chyron Mosaic XL
Cables
  • 12mm SMPTE: 2 -500' 2 -250' 4 -100' 6 -25'
  • Mini Triax: 8 -250' 8 -100' 6 -25'
  • Mini Triax Mult: 2
  • DT12 8 -250' 8 -100'
  • 8 DT12 Fanout sets
  • 4 DT12 Breakout Box(es)
  • 4 pair mult: 2 -100' 2 -50'
  • Assorted Single Line XLR
  • TAC-12 ST-ST 2 - 250 2 -500' 1 -1500' 2 200' or less
  • 5 Pair HD Coax Loom 5 -25' 5 -125'
  • Assorted Single Line Coax
  • 2 sets of 75' 4/0 Camlock Power Cable

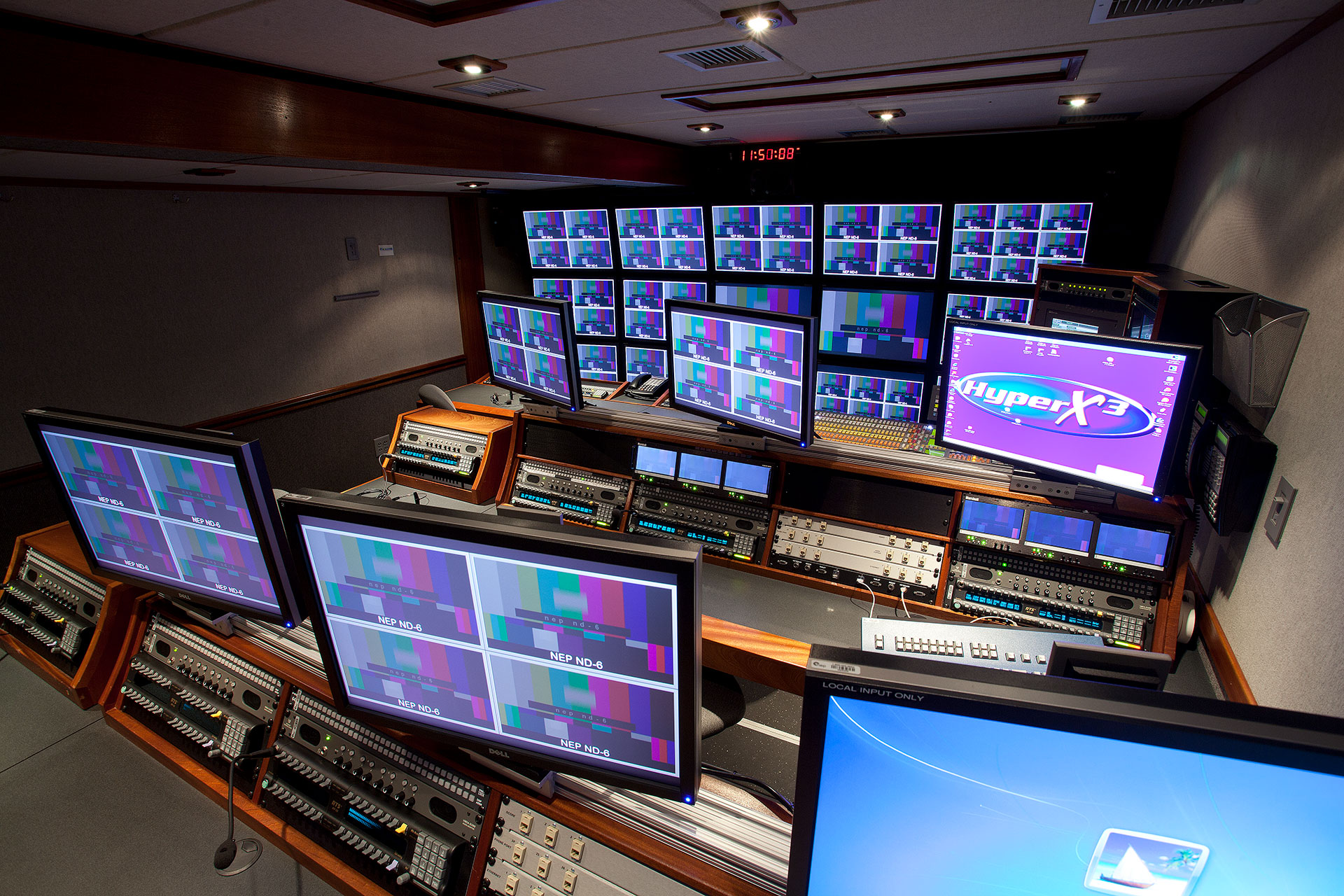

ND6 Production Monitor Wall
ND6 Record/Replay Monitor Wall
ND6 Record/Replay Console Monitor Wall

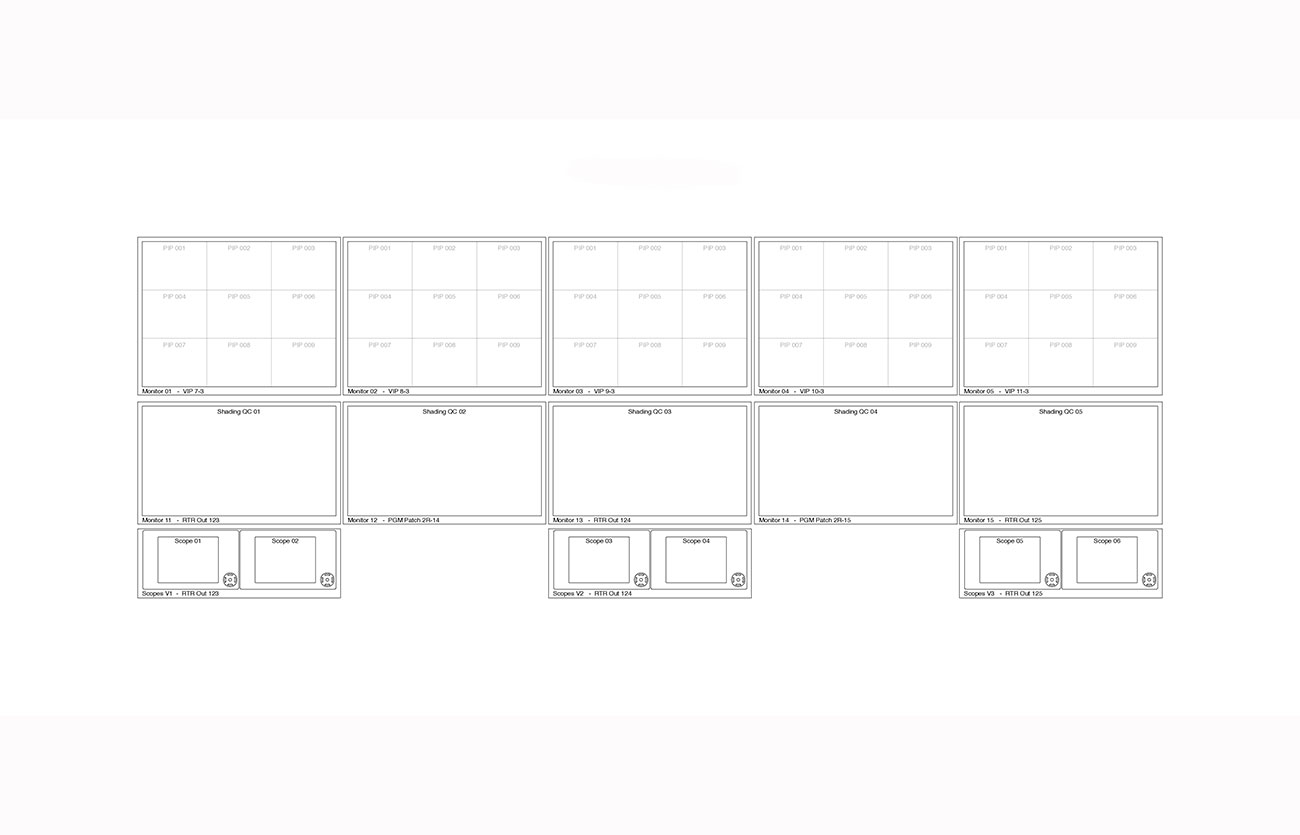

ND6 Video Monitor Wall
ND6 P2 Bench Monitor Wall
ND6 P3 Bench Monitor Wall

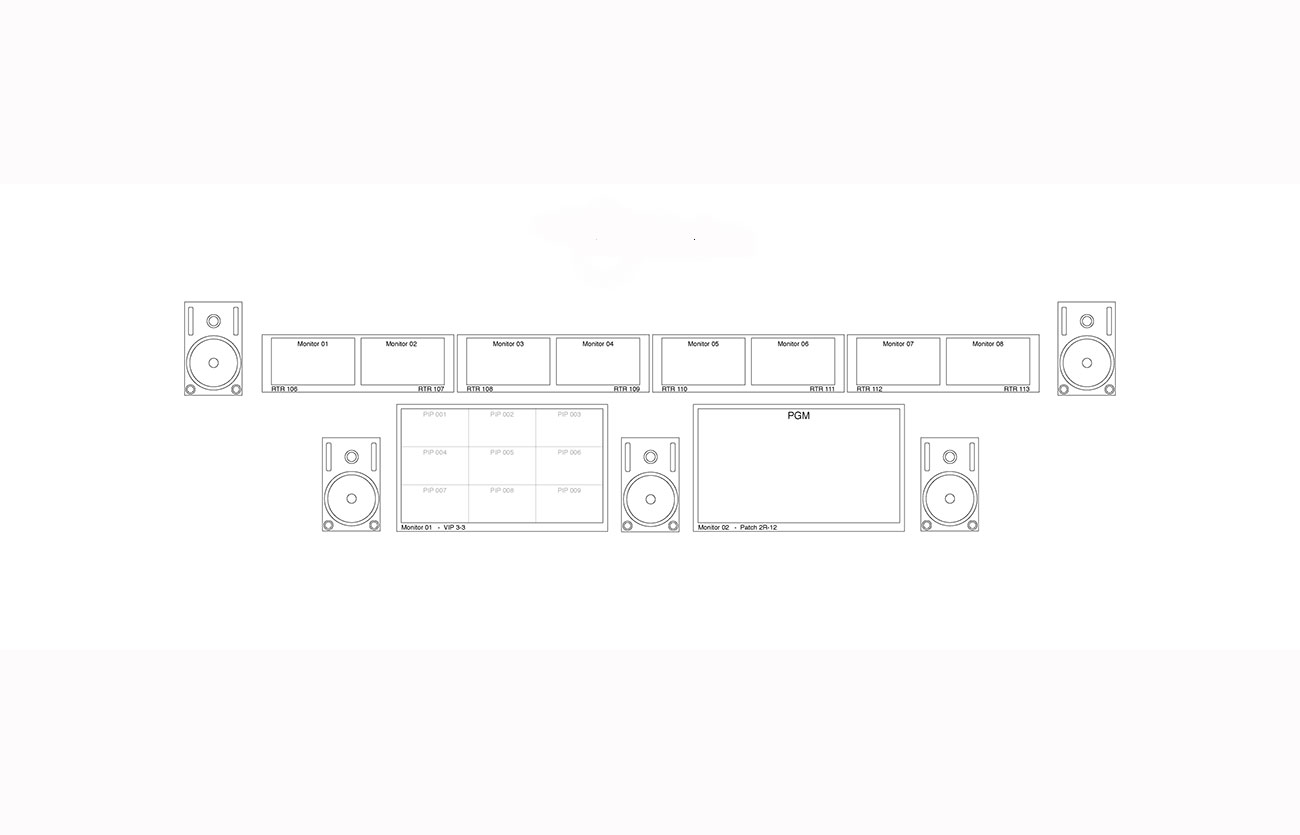

ND6 Audio Monitor Wall
ND6 Floor Plan
