HD5

HD5

NEP | Norway

HD 5 is a small, but very flexible truck built for smaller sporting events such as horse racing and football. HD 5 can accommodate up to five operating positions within the truck. All installed devices are broadcast standard, and the installation is carried out in the same professional way as our “full size” OB-trucks. For standard small-size productions, HD 5 has storage for cameras and accessories within the vehicle. For enhanced flexibility, HD 5 can also carry add-on equipment in a custom designed trailer.

What’s a Rich Text element?

The rich text element allows you to create and format headings, paragraphs, blockquotes, images, and video all in one place instead of having to add and format them individually. Just double-click and easily create content.

Static and dynamic content editing

A rich text element can be used with static or dynamic content. For static content, just drop it into any page and begin editing. For dynamic content, add a rich text field to any collection and then connect a rich text element to that field in the settings panel. Voila!

How to customize formatting for each rich text
  • Headings, paragraphs, blockquotes, figures, images, and figure captions can all be styled after a class is added to the rich text element using the "When inside of" nested selector system.
  • ‍Headings, paragraphs, blockquotes, figures, images, and figure captions can all be styled after a class is added to the rich text element using the "When inside of" nested selector system.

Headings, paragraphs, blockquotes, figures, images, and figure captions can all be styled after a class is added to the rich text element using the "When inside of" nested selector system.

VEHICLE
  • • Mercedes Sprinter 516 CDI
  • • Length OB-truck: 7 meters
  • • Total length including equipment trailer: 13 meters
  • • Total width: 2 meters
  • • Total width in production: 3 meters
  • • Height: 3 meters
  • • Total weight: 5 tons + trailer 2 tons
Power requirements
  • • 32A, 3-phase, 230V/400V
Power cable carried on vehicle
  • • 40 meters
VIDEO MIXER
  • Ross Carbonite 1,5 M/E
GRAPHICS/CG
  • OPTIONAL: VizRT with following software
  •    - Engine
  •    - Trio
  •    - Artist
MONITORING
  • 42 inch multi viewer with all sources with tally/UMD
  • 1 monitor for CCU operator /Technical manager
  • 2 x 17 inch monitors with quad split for slow motion operator
  • 1 x 17 inch monitor for graphics operator
ROUTER
  • HD SDI Digital video 16 x 16 Nevion Sublime
  • AES/EBU Digital Audio: 32 x 32 Nevion Sublime
  • Router panels: Nevion router panels
EVS / TAPE MACHINES / PLAYERS- AND RECORDERS
  • 8-CH EVS
  • 2 x XDCam HD 422
  • Recording to up to 8x USB sticks
CAMERAS
  • 5 Sony HXC 100
  • Accessories for all cameras
  •    o Headset for various purpose (Studio/Noisy environments / Handheld)
  •    o Large and small viewfinders with sunshield for outdoor use
  •    o Electronic/Digital zoom/focus demand
  •    o Rain covers
  • Wired for up to 5 cameras.
  • Upon request:
  •    - Superslow SD/HD
  •    - Wireless camera systems
  •    - Gigawave D-Cam
  •    - Link systems wireless
  •    - Sony HDC X310K
  •    - Sony HDC-P1
  •    - Other special cameras/remote heads etc.
TRIPODS
  • Vinten 2-stage ENG-tripods (Vinten 100/250)
CAMERA CABLE
  • Triax cable
  • 2 x 125 meters per. camera chain on portable drums
LENSES
  • Canon HJ22x7,6
  • All other lenses available upon request
AUDIO
  • Yamaha LS9-16 digital mixer:
  •    - 16 Mic in
  •    - 8 line out
  •    - 8 aes i/o
Monitoring: Genelec 6010 series
  • TC Electronic DB-max for stereo final compression
  • 2 x commentary systems. (via Riedel matrix)
MICROPHONES
  •    1 x Sennheiser MKH 70 Full shotgun microphones
  •    4 x Sennheiser MKH 416 Half shotgun microphones
  •    2 x Sennheiser MKH 40 Cardiod microphones
  •    2 x Sennheiser handheld microphones
AUDIO MULTICORES
  • 1 x 100 m 12-pair multicore, LK 37
COMMUNICATION
  • Matrix: Riedel Artist 32
  •    - Ready for 8 panels / 16x analogue 4-W / 6x aes 4-W
  •    - 5 panels internally within the OB-truck
  •    - 2 external panels/desk-top panels (for hook-up where they are required)
  • 1 x ISDN codec for communication/audio transmission with programme quality
  • 2 x duplex base stations for wireless communication
  • 6 x portable radios

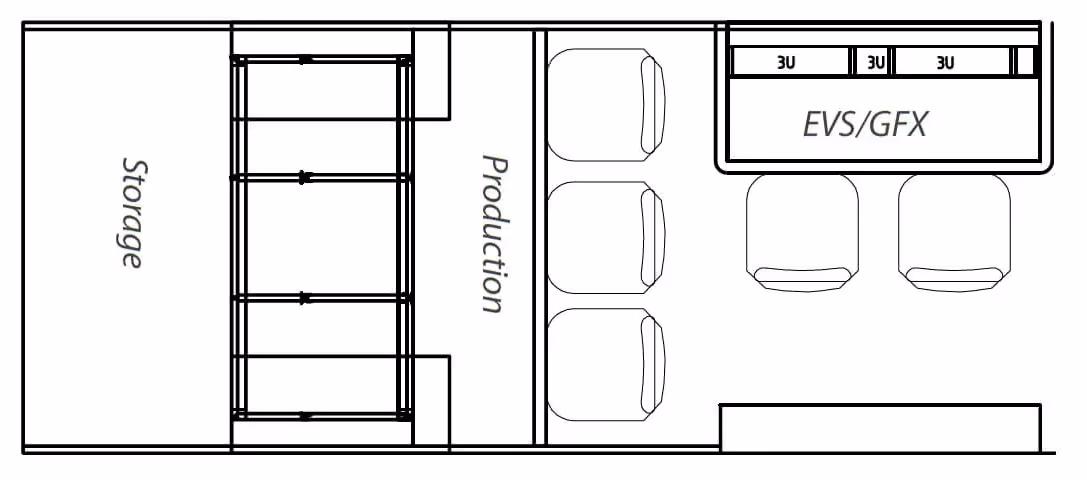

HD5 Floorplan
