Unit 15

Unit 15

NEP | Belgium

Unit 15 is a large, 20 camera HD production unit.

What’s a Rich Text element?

The rich text element allows you to create and format headings, paragraphs, blockquotes, images, and video all in one place instead of having to add and format them individually. Just double-click and easily create content.

Static and dynamic content editing

A rich text element can be used with static or dynamic content. For static content, just drop it into any page and begin editing. For dynamic content, add a rich text field to any collection and then connect a rich text element to that field in the settings panel. Voila!

How to customize formatting for each rich text
  • Headings, paragraphs, blockquotes, figures, images, and figure captions can all be styled after a class is added to the rich text element using the "When inside of" nested selector system.
  • ‍Headings, paragraphs, blockquotes, figures, images, and figure captions can all be styled after a class is added to the rich text element using the "When inside of" nested selector system.

Headings, paragraphs, blockquotes, figures, images, and figure captions can all be styled after a class is added to the rich text element using the "When inside of" nested selector system.

Vehicle-Specific Information
  • Dimensions: Truck - 14m x 4,7m x 4m; Work area - 17m x 7m
  • Power: 50 kVA on 3-Phase, 400V, 125A CEE (P17) connector
Production
  • Sony MVS-7000 Switcher 40 inputs/ 24 outputs, 4 ME or 50p/2ME
  • 16 Resisers
  • 2 3D DVE channels
Communications
  • Reidel Intercom System - 128 Ports
  • 6 walkie talkies with 3 base stations
  • 2 ISDN Codec
  • 1 PSTN Interface
  • Overline system or Telex BTR700/800 (on request)
Cameras
  • Up to 20 GVG LDK8000 Elite / Sony HDC2550 Cameras
Support Equipment
  • Miranda 8280 Hybrid Router
  • HD video - 288 inputs x 450 outputs
  • Equipped with Lawo VSM Control and Monitoring System
  • Lawo Nova HD Core 3K with 8 Ravenna & 16 MADI
Audio
  • Lawo MC2 66 56 Faders 48 Mic/Line Inputs 32 Analog Outputs
  • 1 Stage Box (up to) 48 Mic/Line Inputs
  • 1 CD Player
  • 1 Spot-On
Record & Playback
  • 4 DVD Recorder w/ remote control
  • Up to 8 VTR
  • Up to 6 EVS XT

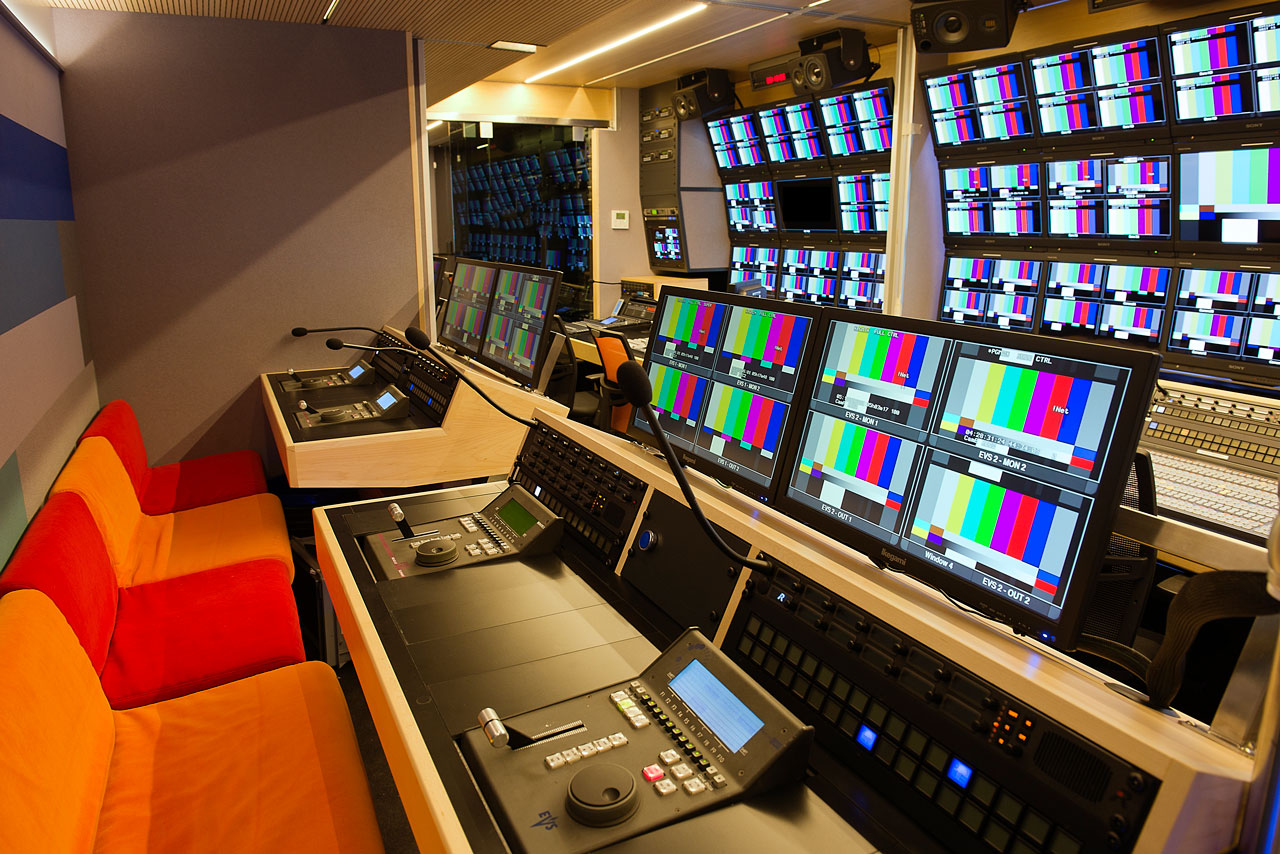

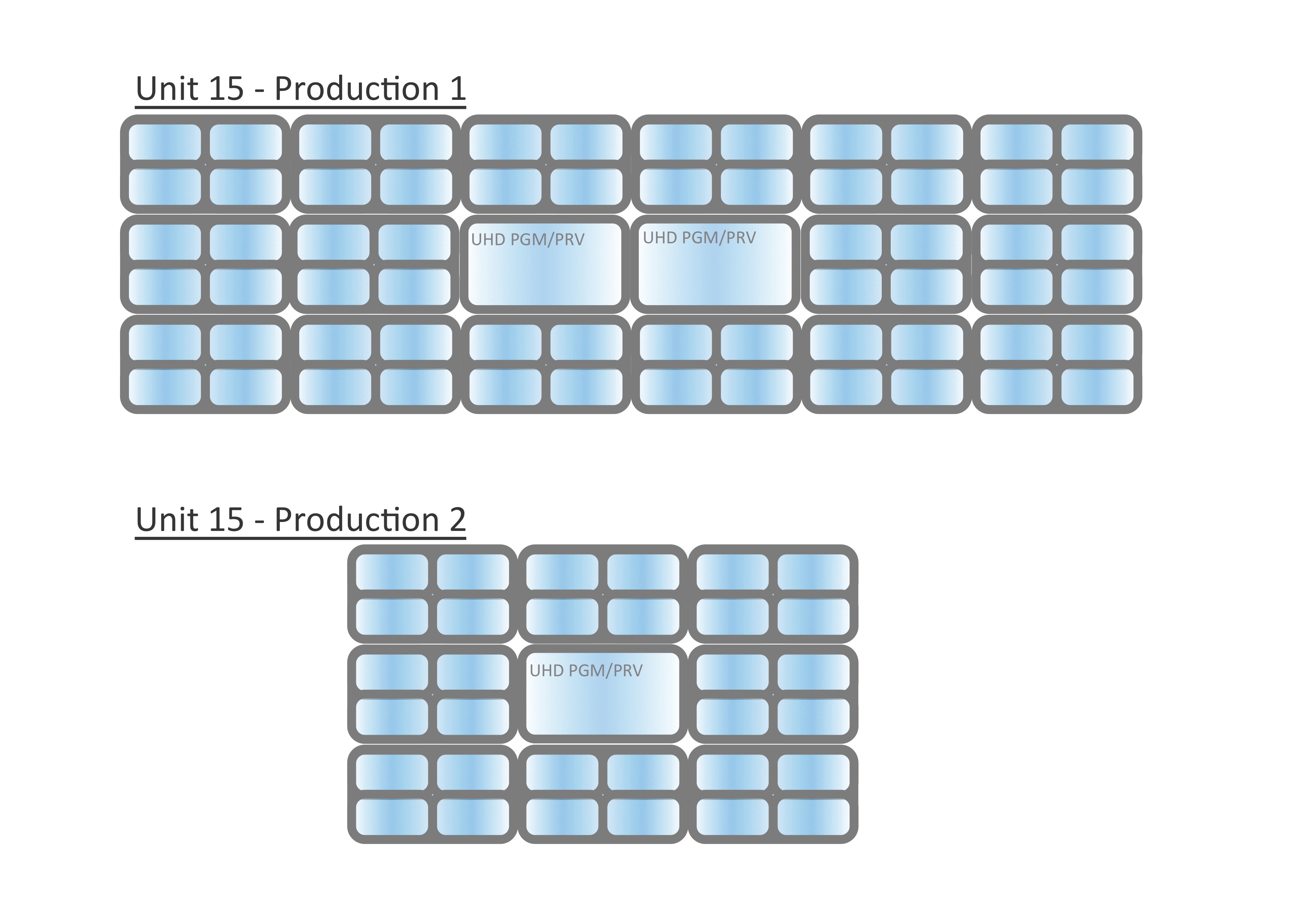

Unit 15 Production1 Monitor Wall
Unit 15 Production1 Slomo Desk Monitor Wall
Unit 15 Production 2 Monitor Wall
Unit 15 Production 2 Desk Monitor Wall

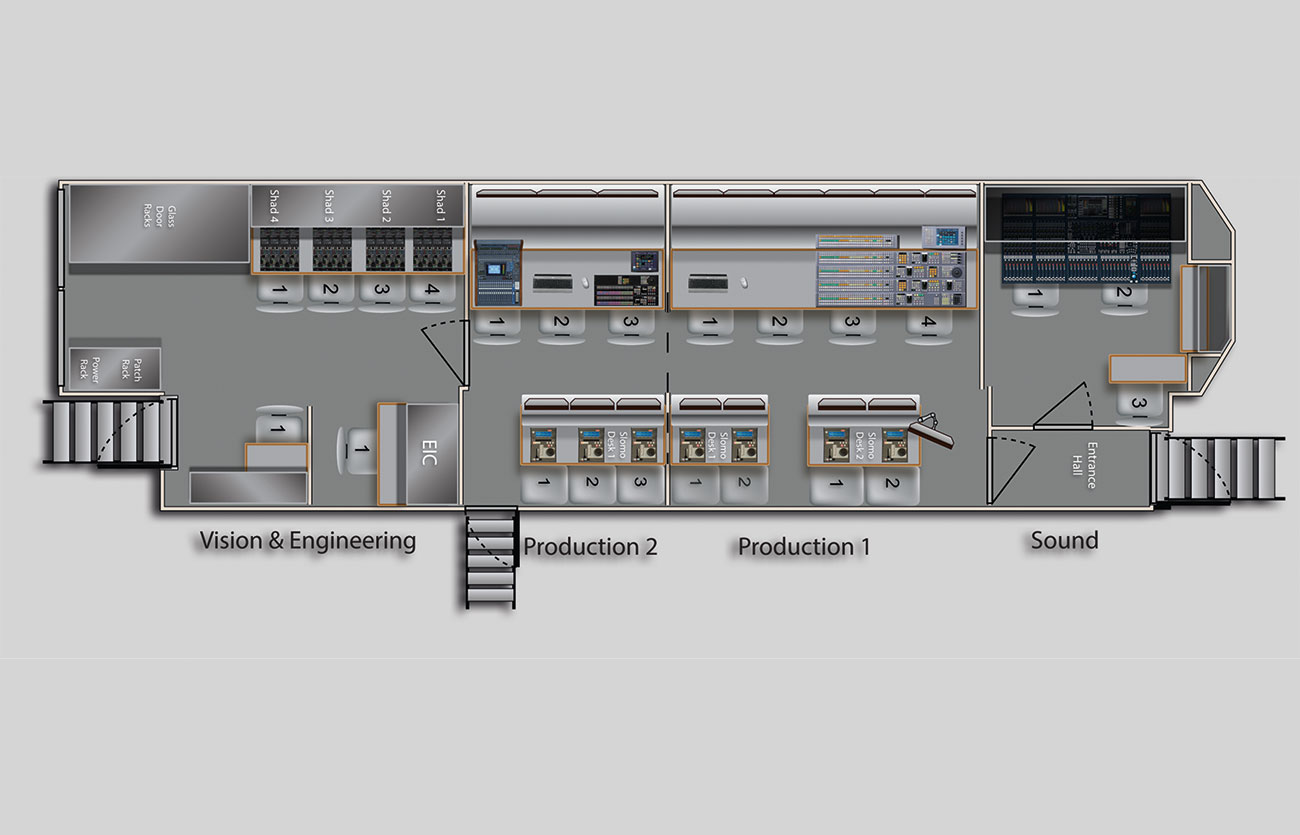

Unit15_floorplan
