Super B

Super B

NEP | United States

Super B offers the flexibility to pair with any NEP Mobile Television Production Truck providing additional space and capacity to any production. In addition to the support equipment listed below in the Technical Specifications, Super B includes Provision for a Yamaha MC-7L Audio Console and tie lines for additional audio equipment, Wiring for 10 Cameras, Seating for 7 record/replay operators and support for 20 VTRs, 8 6 channel EVS XT2, an X-File, IP Director, and Seating for 7 graphics operators.

What’s a Rich Text element?

The rich text element allows you to create and format headings, paragraphs, blockquotes, images, and video all in one place instead of having to add and format them individually. Just double-click and easily create content.

Static and dynamic content editing

A rich text element can be used with static or dynamic content. For static content, just drop it into any page and begin editing. For dynamic content, add a rich text field to any collection and then connect a rich text element to that field in the settings panel. Voila!

How to customize formatting for each rich text
  • Headings, paragraphs, blockquotes, figures, images, and figure captions can all be styled after a class is added to the rich text element using the "When inside of" nested selector system.
  • ‍Headings, paragraphs, blockquotes, figures, images, and figure captions can all be styled after a class is added to the rich text element using the "When inside of" nested selector system.

Headings, paragraphs, blockquotes, figures, images, and figure captions can all be styled after a class is added to the rich text element using the "When inside of" nested selector system.

Vehicle-Specific Information
  • 53' long x 13'6" high x 8'6" wide
  • 65' long x 13'6" high x 17' wide expanded without tractor
  • 85' long x 13'6" high x 17' wide expanded with tractor
  • Curbside Expando
  • TRACTOR # PER EVENT
  • TRAILER VIN # 11AA5320611769402
  • PA -PT6770J
  • TOTAL WEIGHT 74,180 LBS
  • 200 amp, 208 volt, 3 phase, 4 wire
Communications
  • Adam Intercom System - 64 Ports
Support Equipment
  • Grass Valley
  • HD video - 128 inputs x 192 outputs
  • AES 256 inputs x 256 outputs
  • Analog audio 256 inputs x 256 outputs
  • 30 Utility Frame Syncs/Processors
  • 4 HD Video over Fiber Transmitters
  • Monitors:
  • 6 - 22" LCD, 4 - 9" Analog
Cables
  • DT12 4 -100'
  • 4 DT12 Fanout sets
  • Ramlatch Audio Cable 2 - 125'
  • TAC-4 ST-ST 2 -500'
  • 5 Pair HD Coax Loom 16 -125'
  • Assorted Single Line Coax and XLR Cables
  • 1 sets of 100' 4/0
Super B Graphics Monitor Wall
Super B Videotape Monitor Wall

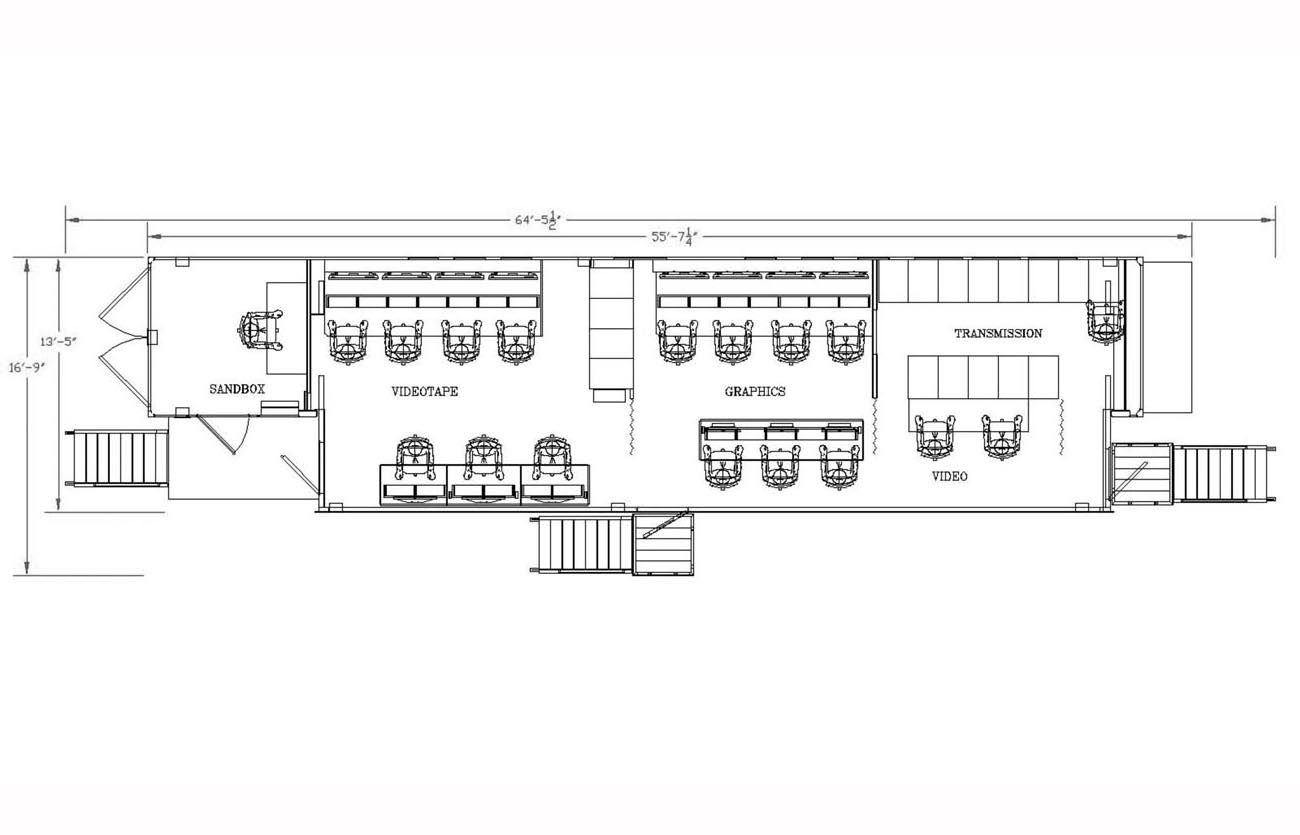

Super B Floor Plan
