HD2

HD2

NEP | Norway

HD 2 has an audio control that can meet all the requirements related to live music and production of large entertain-ment shows, as well as the largest sporting events. HD 2 is very well suited for larger concerts and other types of events with high demands on both audio and video infrastructure. With space for a total of 24 cameras, 4 ccu operators, 6 slow-motion operators and two separate production rooms, HD 2 meets the requirements for the most extensive productions. Great emphasis has been placed on flexibility and comfort in HD 2, offering a light and pleasant working environment. HD 2 has its own, custom-built semitrailer that functions as a storage and transport vehicle for all of the peripheral equipment that is used for a major sports production or other large-scale events. The chassis has been built by Moeyersons in Belgium, and the technical installation has been performed by SONY Professional Services in Basingstoke, England.

What’s a Rich Text element?

The rich text element allows you to create and format headings, paragraphs, blockquotes, images, and video all in one place instead of having to add and format them individually. Just double-click and easily create content.

Static and dynamic content editing

A rich text element can be used with static or dynamic content. For static content, just drop it into any page and begin editing. For dynamic content, add a rich text field to any collection and then connect a rich text element to that field in the settings panel. Voila!

How to customize formatting for each rich text
  • Headings, paragraphs, blockquotes, figures, images, and figure captions can all be styled after a class is added to the rich text element using the "When inside of" nested selector system.
  • ‍Headings, paragraphs, blockquotes, figures, images, and figure captions can all be styled after a class is added to the rich text element using the "When inside of" nested selector system.

Headings, paragraphs, blockquotes, figures, images, and figure captions can all be styled after a class is added to the rich text element using the "When inside of" nested selector system.

VEHICLE
  • Scania R580 tractor
  • Total length: 18 meters (w/trailer)
  • Total width: 2,5 meters
  • Total width in production: 3,8 meters
  • Height: 4 meters
  • Total weight: 39 tons
  • Space required to park the OB-truck and tender vehicle: 41 x 5 meters or 20 x 10 meters
Power requirements
  • 2 x 63A, 3-phase, 230V or 400V
Power cable carried on vehicle
  • 40 meters
VIDEO MIXER
  • Sony MVS-8000 SD/HD
  •    - 4 M/E
  •    - 51 Inputs
  •    - 48 Outputs
  •    - Chroma key
  •    - Colour corrector
  •    - 12 keyers in total
  •    - 8 channels frame memory
  • Separate mixer panel with full M/E for sub production
DME
  • Sony MVE 8000A
  • 4 channels (Video + Key)
GRAPHICS/CG
  • VizRT with following software
  •    - Engine/Trio
  •    - Artist
MONITORING
  • 21 configurable monitors for production with tally/UMD
  •    - 17 monitors with quad-split/68 sources
  • 6 source monitors for each VTR/Slow-motion operator
  • 6 source monitors with quad-split for CCU operators (24 sources)
  • 4 “Grade A” monitors for CCU operators
  • 4 monitors for Technical manager
  •    - 2 monitors with quad split
  • All monitors with tally/UMD
SCRIPT TIMER
  • Leitch up/down timer display and script panel in
  • production
ROUTER
  • HD/SD SDI Digital video: Sony HDS-X5800 192 x 272
  • Audio routing integrated with Studer S-core system
  • TIME CODE: Network Electronics 32 x 32
  • Router panels: Sony router panels
  • Tally/UMD system: TSL Tallyman TM2+
EVS / TAPE MACHINES / PLAYERS- AND RECORDERS
  • Up to 7 x 8-CH EVS
  • Up to 8 x recorder/players
  •    - XDCamHD422
  •    - HD and SD infrastructure to support requested formats
  • Recording to up to 8x USB sticks
CAMERAS
  • 10 Sony HDC 1500R
  • Accessories for all cameras
  •    - Headset for various purpose (Studio/Noisy environments / Handheld)
  •    - Large and small viewfinders with sunshield for outdoor use
  •    - Electronic/Digital zoom/focus demand
  •    - Rain covers
  • Wired for up to 24 cameras.
  • Upon request:
  •    - Superslow SD/HD
  •    - Wireless camera systems
  •    - Gigawave D-Cam
  •    - Link systems Wireless
  •    - Sony HDC X310K
  •    - Sony HDC-P1
  •    - Other special cameras/remote heads etc.
TRIPODS
  • Vinten 2-stage ENG-tripods (Vinten 100/250)
CAMERA CABLE
  • 9 mm fibre optical cable Lemo HDTV 3K.93C
  • 200 meters per. camera chain on fixed drums
  • 12 x 100 meters on portable drums
LENSES:
  • Canon HJ22x7,6
  • All other lenses available upon request
AUDIO
  • Studer Vista 8 digital mixer / audio routing matrix
  •    - 48 local mic in. (alt. use as remote stagebox)
  •    - 24 line in
  •    - 32 line out
  •    - 128 AES i/o
  •    - Stagebox (72 mic in / 16 line out)
  •    - 2 Madi fibre-connections for stageboxes
  •    - 1 Madi fibre-connection for 64ch ProTools i/o
  •    - Extra stageboxes on request. (36 mic in / 8 line out)
  • Yamaha 01V back-up mixer
  •    - 12 mic in / 8 aes i/o
  • Monitoring: 5.1 set-up, Genelc 8040 series + Sub.
  • Trinnov optimizer MC
  • CD: Tascam RW2000 (CDA burner)
  • ProTools HD2 mac-setup for 64 ch recording.
  • Mac mini with Weiss 8 ch i/o for jingles/bumpers etc.
  • Dolby E encoder/decoder/audio-tool
  • TC Electronic DB-4 with icon remote 5.1 + stereo final compression
  • Lexicon 960
  • TC Electronic 5000
  • 2 x TC Electronic D-two
  • Eventide eclipse
  • 4 x commentary systems. (via Riedel matrix)
MICROPHONES
  •    - 2 x Sennheiser MKH 70 Full shotgun microphones
  •    - 10 x Sennheiser MKH 416 Half shotgun microphones
  •    - 2 x Sennheiser MKH 40 Cardiod microphones
  •    - 2 x Sennheiser handheld microphones
AUDIO MULTICORES
  •    - 4 x 100 m 12-pair multicore, LK 37
  •    - 2 x 200 m fibre-optic cable for stagebox, Lemo 3K, 4-core
COMMUNICATION
  • Matrix: Riedel Artist 128
  • Ready for 32 panels / 48x analogue 4-W / 8x aes 4-W
  •    - 20 panels internally within the OB-truck
  •    - 4 external panels/Desk-top panels (for hook-up where they are required)
  • 2 x ISDN codecs for communication/audio transmission with programme quality
  • 2 x duplex base stations for wireless communication
  • 12 x Portable radios

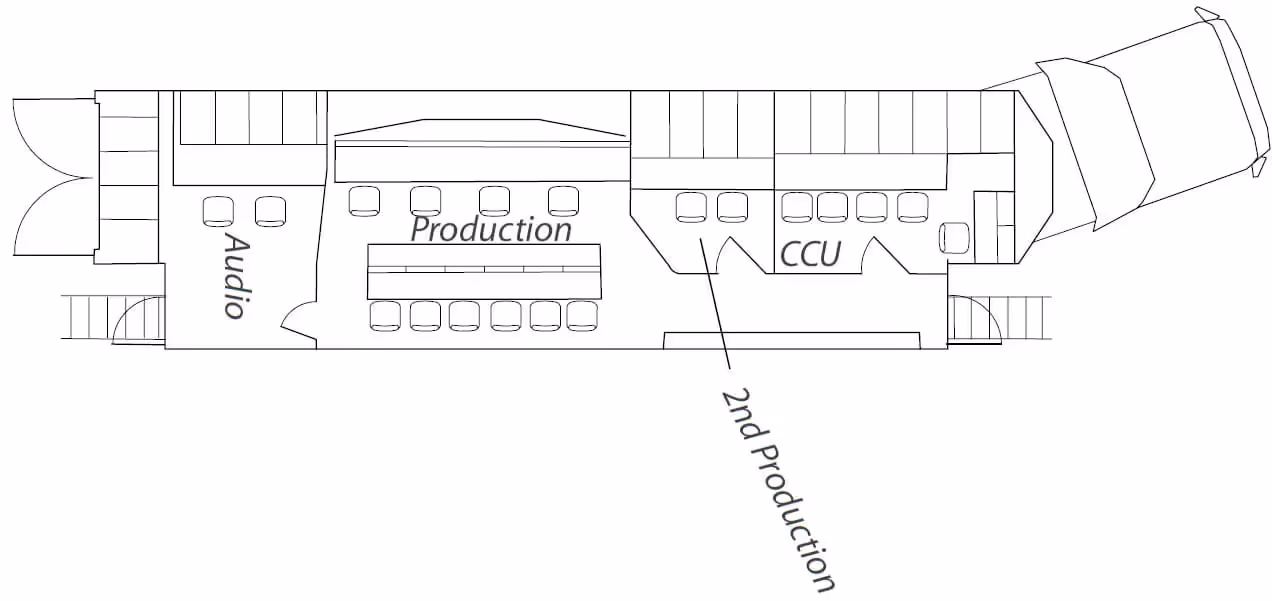

HD2 Floorplan
