Unit 7 - Middle East

Unit 7 - Middle East

A double expansion HD OBVAN controlled by VSM and equipped with a Nevion 64×64 video matrix and Sony MVS6000 vision mixer (2.5 M/E, 49 input – 24 output). This OB can handle productions of up to 12 Sony HDC1500R cameras, 2 x wireless systems (Vislink 1500 and DOMO BTX) with control, 2 x EVS XT2 K2 Dyno replay systems, Graphics using Title Box, and tapeless recorders ‘HyperDeck Studio Pro’. This OB features a Midas Pro2 Audio Console (56 digital stereo inputs, 20 Aux, and 8 Groups), Yamaha SPX 990 and TC 6000 audio effects, and a Clearcom Eclipse HX (16-port) intercom system.

    What’s a Rich Text element?

    The rich text element allows you to create and format headings, paragraphs, blockquotes, images, and video all in one place instead of having to add and format them individually. Just double-click and easily create content.

    Static and dynamic content editing

    A rich text element can be used with static or dynamic content. For static content, just drop it into any page and begin editing. For dynamic content, add a rich text field to any collection and then connect a rich text element to that field in the settings panel. Voila!

    How to customize formatting for each rich text
    • Headings, paragraphs, blockquotes, figures, images, and figure captions can all be styled after a class is added to the rich text element using the "When inside of" nested selector system.
    • ‍Headings, paragraphs, blockquotes, figures, images, and figure captions can all be styled after a class is added to the rich text element using the "When inside of" nested selector system.

    Headings, paragraphs, blockquotes, figures, images, and figure captions can all be styled after a class is added to the rich text element using the "When inside of" nested selector system.

    VIDEO EQUIPMENT

    CAMERA SYSTEM
    • Sony HDC1500/R (12)
    WIRELESS CAMERA SYSTEM
    • Vislink 1500 (2)
    • DOMO BTX
    CAMERA CONNECTION
    • Fiber Optic Lemo SMPTE
    CAMERA LENSES
    • Canon
    TRIPODS
    • CARTONI
    • VINTEN
    • SACHTLER
    • CAM-GEAR
    HD VISION MIXER
    • Sony MVS 6000 2.5M/E
    • 49 input - 24 output
    CHARACTER GENERATOR
    • Title Box

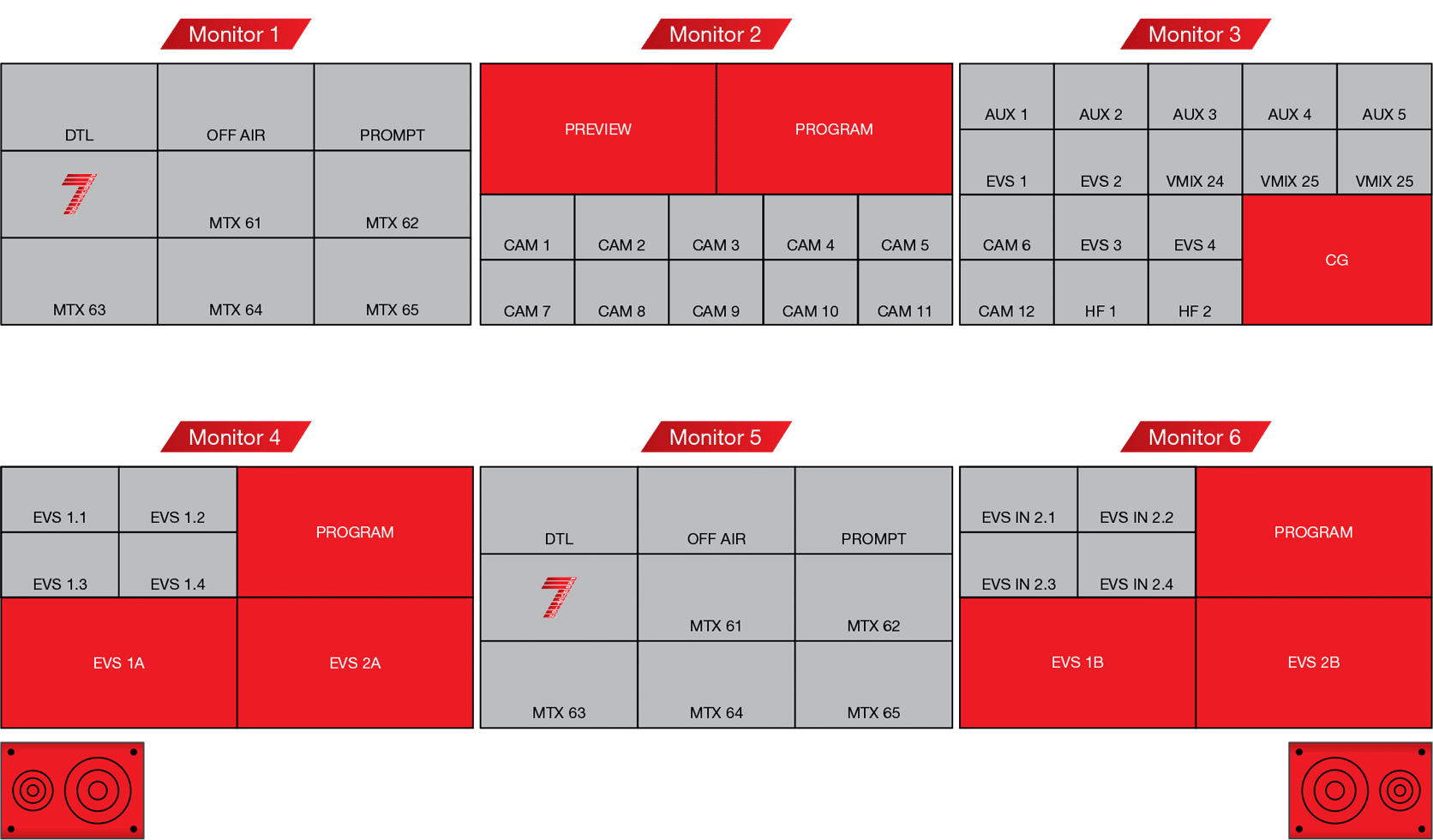

    PRODUCTION ROOM MONITORS
    • Sony LCD screen 55inch (3)
    SHADING ROOM MONITORS
    • Sony Monitor (2)
    • Blackmagic Monitors (16)
    MULTIVIEWER SYSTEM
    • Vipx Evertz
    • ForA MV
    HD VTRS
    • Sony HDW M2000P (1)
    TAPELESS RECORDERS
    • HyperDeck Studio Pro (10)
    REPLAY SYSTEM
    • EVS XT2
    • K2 Dyno
    GLUE
    • Evertz
    VIDEO MATRIX
    • Nevion
    • 64 input - 64 output
    OB CONTROL
    • VSM
    WAVEFORM
    • Tektronix WFM 5000

    AUDIO EQUIPMENT

    AUDIO MIXING CONSOLE
    • Midas Pro2
    • 56 Digital stereo inputs. 20 Aux & 8 Groups
    AUDIO MATRIX
    • Midas Pro2 Digital (56 input - 16 output)
    MICROPHONES
    • Sennheiser
    MULTITRACK RECORDING
    • AVID Pro Tools
    AUDIO EFFECTS
    • Yamaha SPX 990
    • TC 6000
    AUDIO MEASUREMENT
    • Decibel
    • Vumeter
    INTERCOM SYSTEM
    • Clearcom Eclipse HX (16 port)
    WIRELESS TALK-BACK INTERCOM SYSTEM
    • Clear-Com HME
    • Riedel Riface with MOTOROLA Base Station and Motorola Radios
    • Kenwood Base Station with Motorola Radios
    HYBRID SYSTEM
    • Glensound GSM Hybrid
    • Glensound Analog Landline Hybrid
    • Glensound Digital ISDN Hybrid

    COACH BUILD

    Length
    • 12.64 meters
    Width stowed
    • 2.52 meters
    Width expanded
    • 3.50 meters
    Height
    • 4 meters
    Weight
    • 18t
