Unit 5 - Middle East

Unit 5 - Middle East

Non-expandable HD OBVAN based on Sony MVS 6000 2.5 M/E vision mixer and Miranda video matrix. This OB can handle a production of 12 Sony HDC1500/R cameras, 4 x wireless systems (Vislink L11500 and DOMO BTX) with control, 2 x EVS XT2 and K2 Dyno replay systems, Graphics with Title Box, and tapeless recorders ‘HyperDeck Studio Pro’. This OB is equipped with a Midas ProX Audio Console and Clear-Com Eclipse HX intercom system.

    What’s a Rich Text element?

    The rich text element allows you to create and format headings, paragraphs, blockquotes, images, and video all in one place instead of having to add and format them individually. Just double-click and easily create content.

    Static and dynamic content editing

    A rich text element can be used with static or dynamic content. For static content, just drop it into any page and begin editing. For dynamic content, add a rich text field to any collection and then connect a rich text element to that field in the settings panel. Voila!

    How to customize formatting for each rich text
    • Headings, paragraphs, blockquotes, figures, images, and figure captions can all be styled after a class is added to the rich text element using the "When inside of" nested selector system.
    • ‍Headings, paragraphs, blockquotes, figures, images, and figure captions can all be styled after a class is added to the rich text element using the "When inside of" nested selector system.

    Headings, paragraphs, blockquotes, figures, images, and figure captions can all be styled after a class is added to the rich text element using the "When inside of" nested selector system.

    VIDEO EQUIPMENT

    CAMERA SYSTEM
    • Sony HDC1500/R (12)
    WIRELESS CAMERA SYSTEM
    • Vislink L11500 (4)
    • DOMO BTX
    CAMERA CONNECTION
    • Fiber Optic Lemo SMPTE
    CAMERA LENSES
    • Canon
    TRIPODS
    • CARTONI
    • VINTEN
    • SACHTLER
    • CAM-GEAR
    HD VISION MIXER
    • Sony MVS 6000 2.5 M/E
    • 32 inputs - 16 outputs
    CHARACTER GENERATOR
    • Title Box

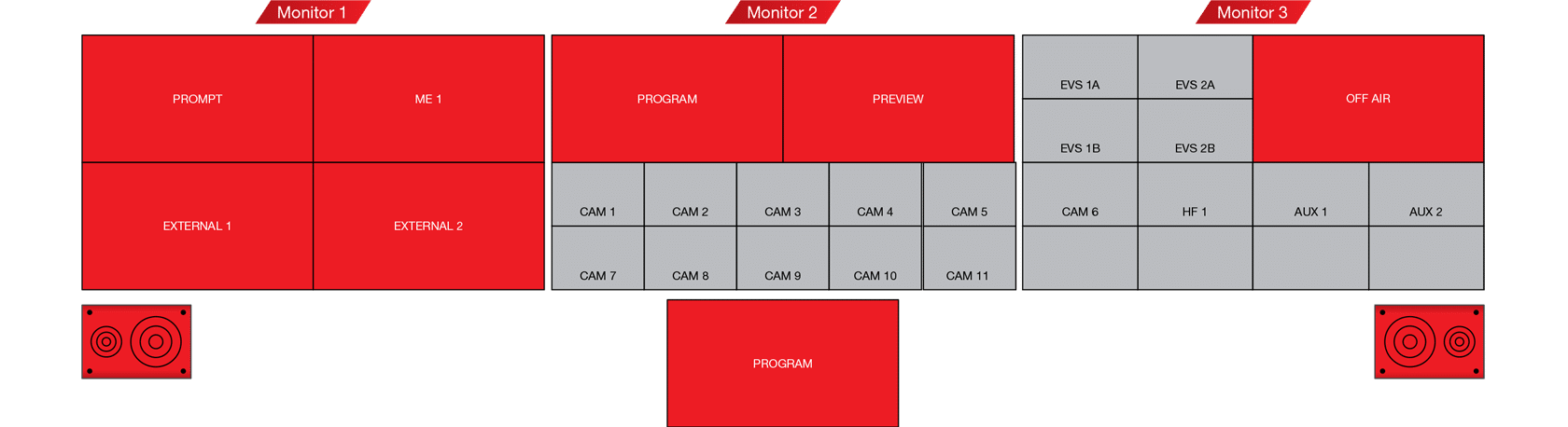

    PRODUCTION ROOM MONITORS
    • Sony LCD screen 55inch (2)
    • Samsung LCD screen 55inch (1)
    SHADING ROOM MONITORS
    • Sony 15inch LMD1530 (2)
    • Samsung LCD screen 55inch (1)
    • Blackmagic Monitor (28)
    MULTIVIEWER SYSTEM
    • For A
    • MVS 3000 MV
    HD VTRS
    • Sony HDW M2000 (2)
    TAPELESS RECORDERS
    • HyperDeck Studio Pro (10)
    REPLAY SYSTEM
    • EVS XT2
    • K2 Dyno
    GLUE
    • Axon
    VIDEO MATRIX
    • Miranda
    • 81 input - 126 output
    WAVEFORM
    • Tektronix WFM 5000

    AUDIO EQUIPMENT

    AUDIO MIXING CONSOLE
    • Midas ProX
    • Inputs local Ana:16 Dig:4 - Outputs: Ana:16 Dig:4
    • Stage box Inputs: Ana: 48 - Outputs Ana:16
    • Stage box Inputs: Ana: 16 Dig:8 - Outputs Ana:32 Dig:8
    • Dolby 5.1
    MICROPHONES
    • Sennheiser
    MULTITRACK RECORDING
    • AVID Pro Tools
    AUDIO EFFECTS
    • internal EFX
    AUDIO MEASUREMENT
    • Decibel
    • VU meter
    INTERCOM SYSTEM
    • ClearCom Eclipse HX
    • 16-4wire
    • 11 panel in ob - 5 external panels
    WIRELESS TALK-BACK INTERCOM SYSTEM
    • Clear-Com HME
    • Riedel Riface with MOTOROLA Base Station and Motorola Radios
    • Kenwood Base Station with Motorola Radios
    HYBRID SYSTEM
    • Glensound GSM Hybrid
    • Glensound Analog Landline Hybrid
    • Glensound Digital ISDN Hybrid

    COACH BUILD

    Length
    • 12.97 Meters
    Width stowed
    • 2.57 Meters
    Width expanded
    • 3.50 Meters
    Height
    • 3.70 Meters
    Weight
    • 18t
